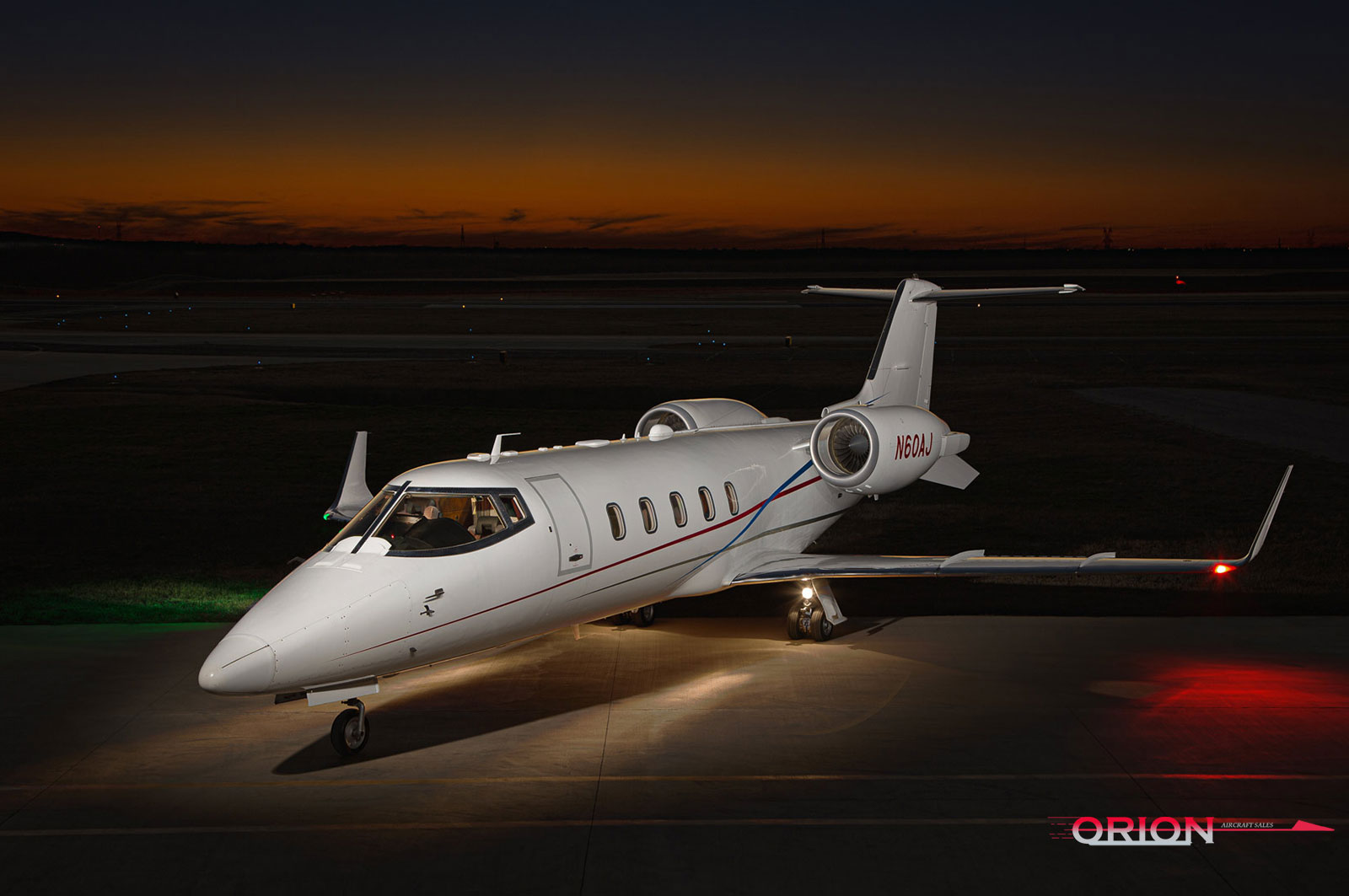

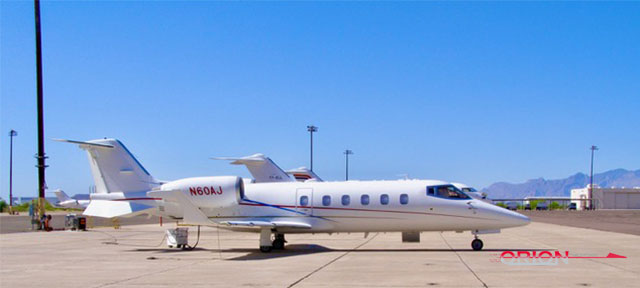

2011 BOMBARDIER LEARJET 60XR 1635 TT

AIRFRAME

• IN SERVICE DATE JANUARY 20, 2011
• AIRFRAME TOTAL HOURS: 1635
• TOTAL LANDING: 945
• MANUFACTURE: BOMBARDIER
• AIRCRAFT LOCATION: USA

ENGINES

• PRATT AND WHITNEY PW305A
• ESP GOLD ENGINE MAINTENANCE PROGRAM
• ENGINE 1: TSN Hours 1618 / 930 Cycles
• ENGINE 2: TSN Hours 1635 / 645 Cycles

APU

• SUNDSTRAND TURBOMACH T-20G
• APU HOURS 1106, 1620 STARTS

AVIONICS

• COLLINS PRO LINE 21 AVIONICS
• COLLINS AFD 3010 and AFD-3010E 4 TUBE 8X10” LCD DISPLAYS
• COLLINS AUTO PILOT CONTROLER L3 COMM
• OPTIONAL AVIONICS INSTALLED TO THE PRO LINE 21 SYSTEM
• DUAL ELECTRONIC CHARTS -JEPPESEN ECH 5000
• DUAL ENHANCED MAP OVERLAYS OVL
• DUAL GRAPHICAL WEATHER GWX 5000
• FLIGHT SERVER APPLICATION UNIVERSAL WX FSA 5000
• DUAL DISPLAY CONTROL PANEL DCP-3040
• VHF TRANSCEIVER #3 COMM VHF 4000 W/VHF DATA LINK
• DUAL VHF- 422C TRANSCEIVER’S W/8.33 KHZ
• DUAL ADF 462
• DUAL DME - 442
• DUAL CDU - 3000
• RADIO ALTIMETER ALT 4000
• DUAL AHRC-3000 COMPUTER
• DUAL ADC -850D AIR DATA COMPUTER
• DUAL AUDIO CONTROL PANEL NAT 802-009
• DUAL TDR -94D MODE S TRANSPONDERS W/ENHANCED SURVEILLANCE
• DUAL RTU- 4220 RADIO TUNING UNIT
• FMS DUAL FMC 5000
• DUAL NAVIGATION VIR-432
• LIGHTING SENSOR WX 1000E
• COMMUNICATIONS MANAGEMENT UNIT CMU 4000
• WEATHER RADAR RT 854
• SECOND FILE SERVER UNIT FSU 5010
• DUAL HF HONEYWELL HF1050
• DUAL GPS 4000A WAAS/LPV
• TCAS TTR 4000
• SECAL DECODER /FREE FLIGHT SYSTEMS/JETCALL-5
• EGPWS COMPUTER MK V
• SMART SKY SYSTEM WI-FI
• ADS B
• ELECTRONIC STANDBY /L3 COMM/GH-3100
• COCKPIT VOICE RECORDER CVR 120
• FLIGHT DATA RECORDER L 3 COMMUNICATIONS FA 2100 MICRO
• QUICK ACCESS(UQAR)

INTERIOR

• LEARJET EXECUTIVE CABIN FLOOR PLAN H
• NEW INTERIOR SOFT GOODS INSTALLED 2023
• CABIN SEATING, 6 FULL ARTICULATING BIRTHING SEATS, CERTIFIED LAVATORY SEAT FOR TAKE OFF AND LANDING 7TH SEAT.
• FORWARD CLUB SEATING PLUS DUAL FORWARD-FACING SEATS FORWARD GALLEY
• AFT LAVATORY WITH VANITY AND BAGGAGE COMPARTMENT

ENTERTAINMENT & CONNECTIVITY

• AUDIO INTERNATIONAL CABIN MANAGEMENT SYSTEM
• FORWARD AND REAR BULKHEAD 15.1 INCH LCD MONITOR’S IPAD VIDEO INPUTS
• AIRSHOW 400 & 410 MOVING MAP SYSTEM
• SMART SKY SYSTEM WI FI
• AIRCELL WITH THREE HANDSETS

ADDITIONAL FEATURES

• LACOBUCCI ESPRESSO MACHINE IN THE GALLEY
• ASTRONICS 110VAC/60HZ SYSTEM CABIN /COCKPIT OUTLETS, WARMING OVEN IN GALLEY
• GALLEY REST SEAT
• SINGLE POINT FUELING
• PULSE LIGHTS
• IMPROVED THREE ROTOR BRAKE

PAINT

• PAINT: FACTORY 2011
• BASE: MATTERHORN WHITE
• MAIN FUSELAGE STRIPE DEEP RED
• CONTRASTING STRIPE COLONIAL BLUE
• LOWER STRIPE COLONIAL GRAY

PROGRAMS

• P&W ESP GOLD ENGINE PROGRAM
• CASP
• CAMP

WEIGHTS

• Ramp Weight: 23750 LB’S
• Gross Weight: 23500 LB’S
• Empty Weight: 14668.LB’S

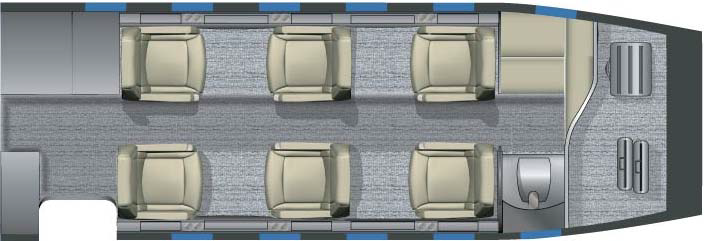

FLOOR PLAN H

7 Certified Passengers Seating With Belted Lavatory Seat

MAINTENANCE

INSPECTIONS NEXT DUE:

• 300/A HOUR 08/04/23 NEXT DUE 6/24/2024 @ 1952 HOURS

• 600/B HOUR 04/21/22 NEXT DUE 6/24/2024 @ 1977 HOURS

• 1200/C HOUR 04/3/23 NEXT DUE 3/27/2027 @ 2721 HOURS

• 2400/D HOUR 0319/19 NEXT DUE 3/27/2027 @ 2721 HOURS

• 12 YEAR COMPLETED 04/23/2023 NEXT DUE JAN 2035

THRUST REVERSERS

IMPROVEMENT SB 60- 78-9 ROI CW 3/2023 VOICE COMMAND SYSTEM
