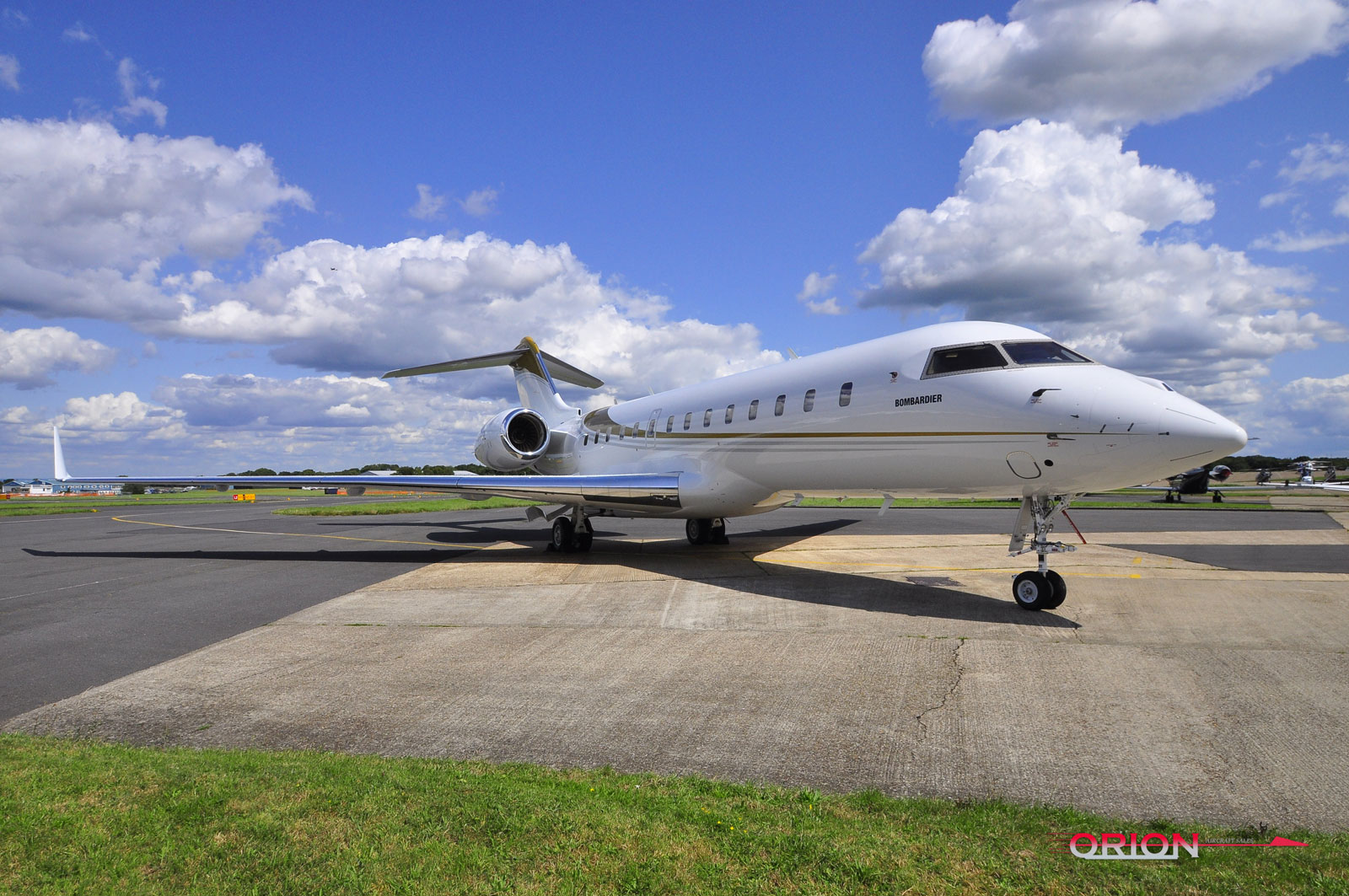

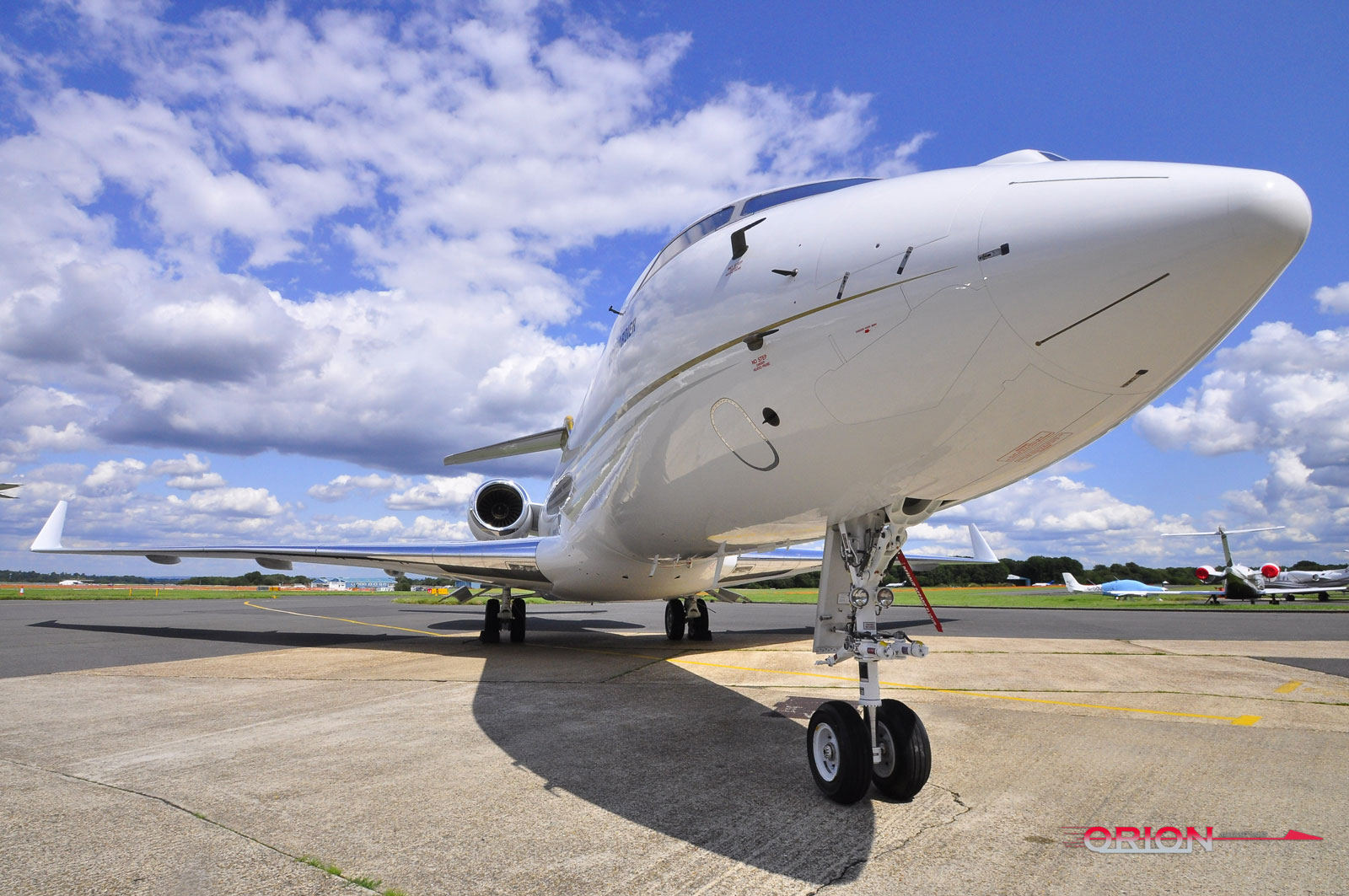

2009 BOMBARDIER GLOBAL 5000 – 2534 TT

AIRFRAME

• IN SERVICE DATE JULY 2009
• AIRFRAME TOTAL HOURS: 2534
• TOTAL LANDING: 1064
• MANUFACTURE: BOMBARDIER
• MODEL: GLOBAL 5000
• AIRCRAFT LOCATION: EU

ENGINES

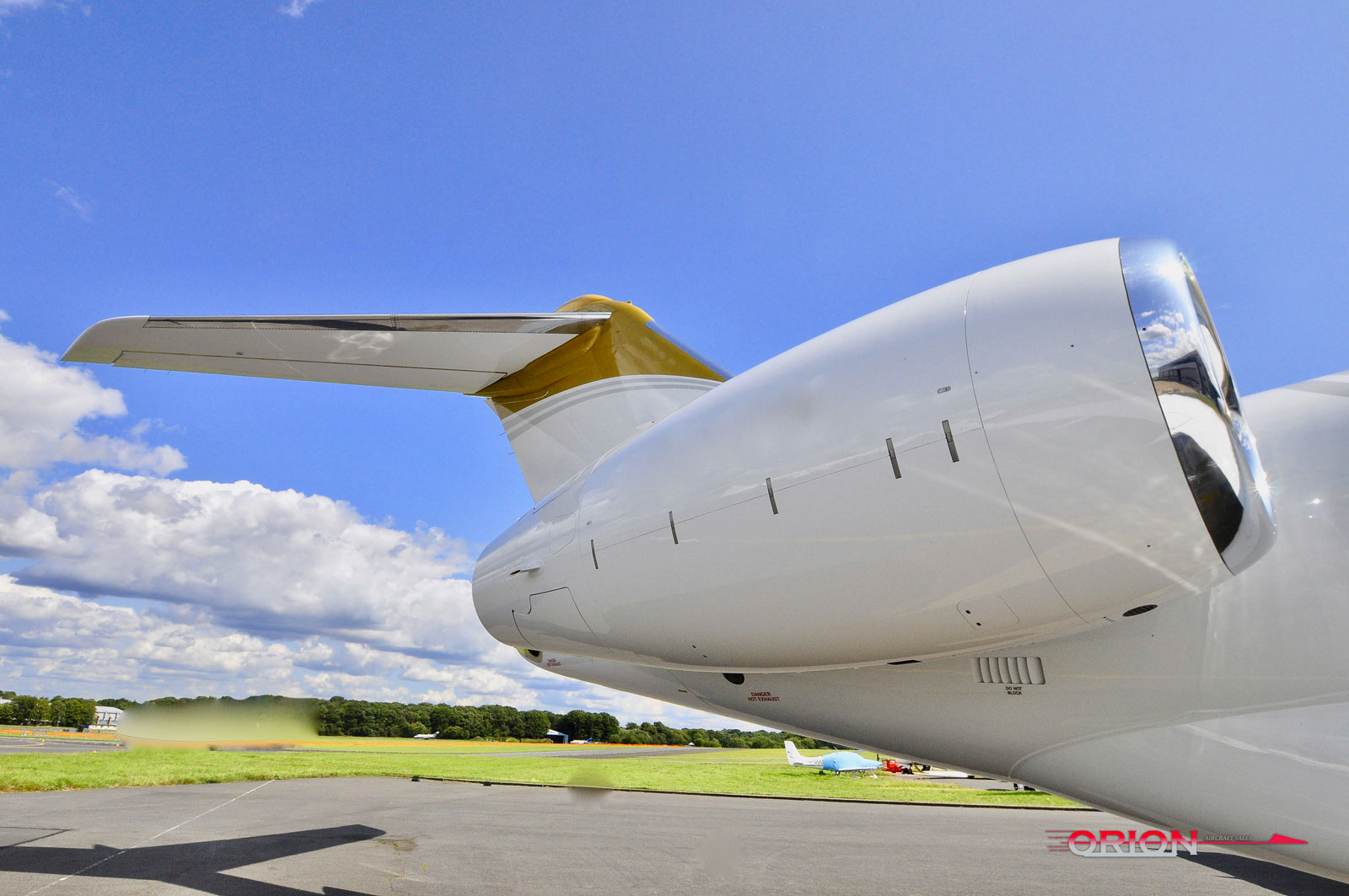

• Engines Rolls-Royce BR700-710A2-20
• Rolls-Royce CorporateCare© Program
• ENGINE 1: TSN Hours 2534 / 1064 Cycles
• ENGINE 2: TSN Hours 2534 / 1064 Cycles

APU

• APU Enrolled on Honeywell MSP
• Honeywell RE220 (GX)
• Total Hours: 3072

AVIONICS

• Honeywell Primus 2000 XP Avionics Suite
• Honeywell Primus 2000 XR 6-Tube EFIS
• Heads-up Guidance System (HGS)
• Enhanced Vision Systems (EVS)
• SAT/COM 6100 Satellite Communications
• ull Authority Digital Engine Control (FADEC)
• Dual Collins HF-9031 HF Comm
• Dual Honeywell RCZ-833 VHF Comm
• Autopilot Emergency Decent Mode
• Quick Access Recorder (QAR)
• Iridium Rockwell Collins Telephone System ICS-100
• Airborne Datalink System (ADLU)
• Triple Honeywell FMS FMS IC-800/Lasertrack
• Honeywell LSZ-860 Lightning Sensor System
• Honeywell MK EGWPS
• Artex ELT 110-406 w/Nav Interface
• Dual Collins ALT-4000 Radio Altimeter
• TCAS w/Change 7.1
• Honeywell WU-880 Weather Radar
• Dual Honeywell GPS Systems With LPV Approach Capability
• ADS-B SB700-34-036
• FANS 1/A + and RNPSB 700-34-027
• Thales Integrated Electronic Standby Instrument

ADDITIONAL FEATURES

• SECURAPLANE: SIX CAMERAS
• ELECTRONIC FLIGHT BAG’s
• ELECTRONIC PILOT CHECK LISTS

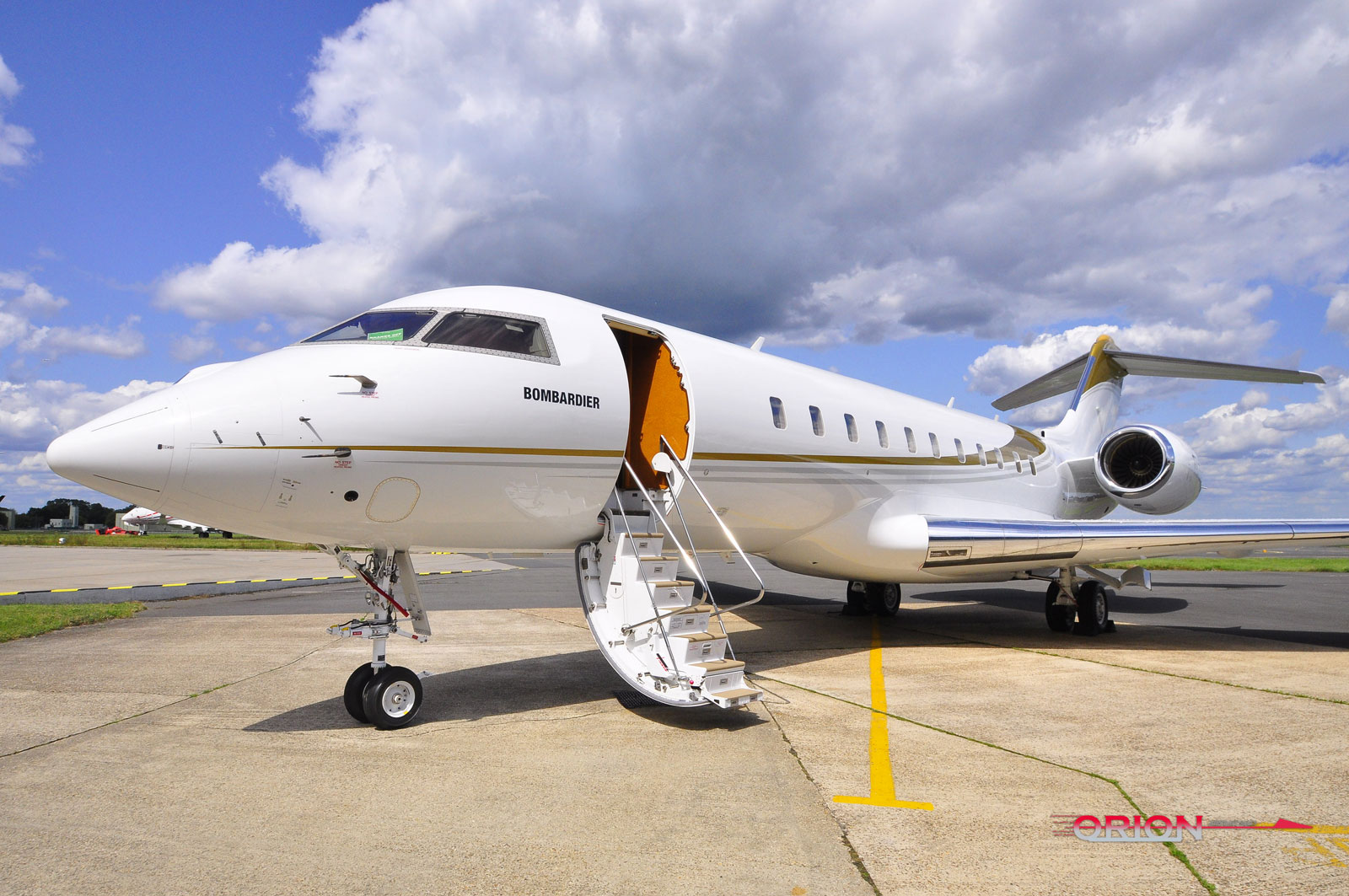

• AIR STAIR HANDRAIL EXTENSIONS
• COMMON KEYED LOCKS
• TAIL LOGO LIGHTS
• GALLEY ENTRY HEATER
• ELECTRONIC WINDOW SHADES
• SECOND REFUEL/DEFUEL AT ENTRY-WAY

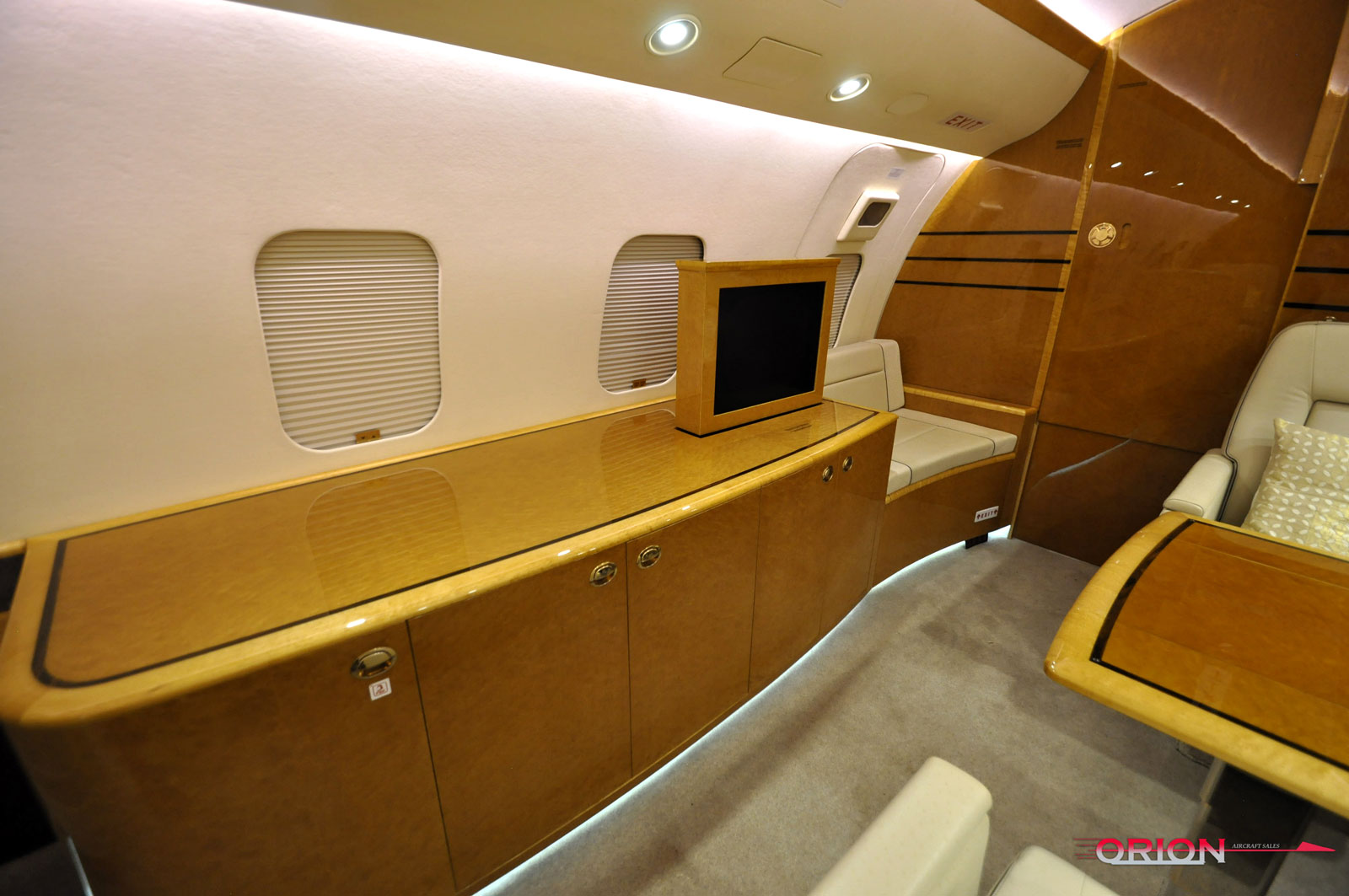

INTERIOR

• July 2019 New Carpet, Wood, Leathers, Divan have been reconditioned by RAS Completions, Biggin Hill, UK. Compliance Per/SB2199-25-130
• Certified Thirteen Passengers
• Forward Lavatory

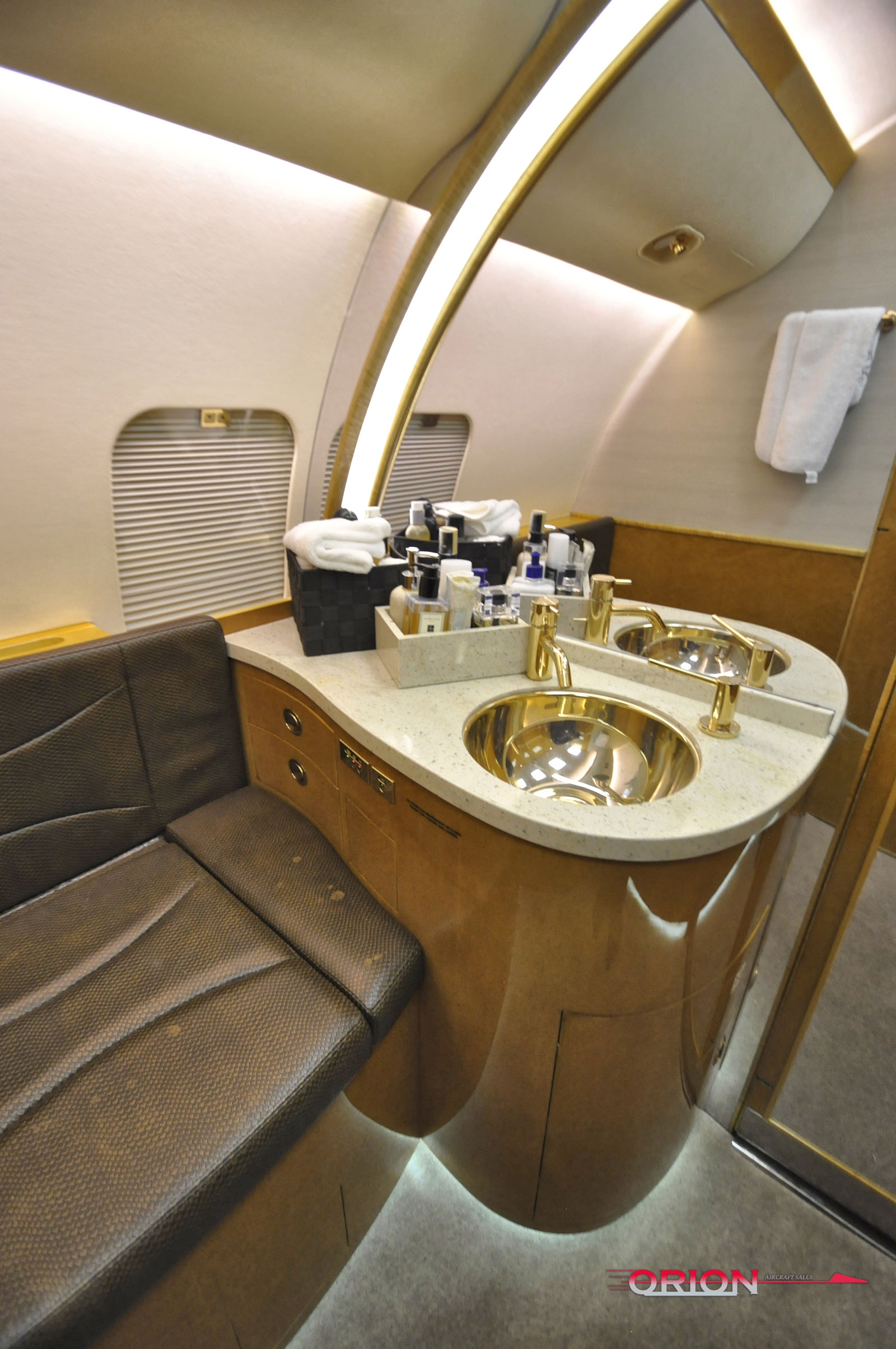

• Rear Lavatory with Wardrobe and Storage Cabinet

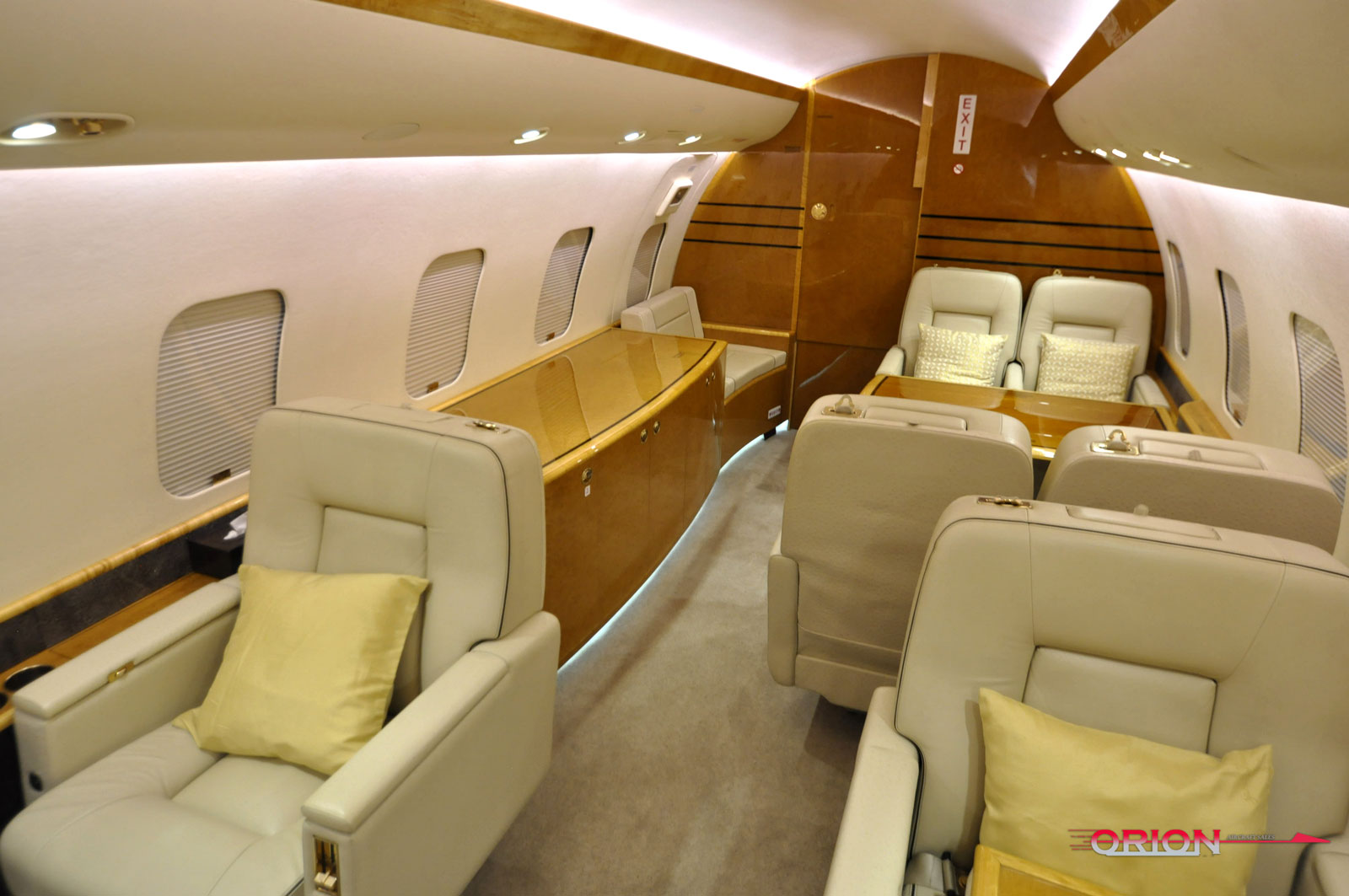

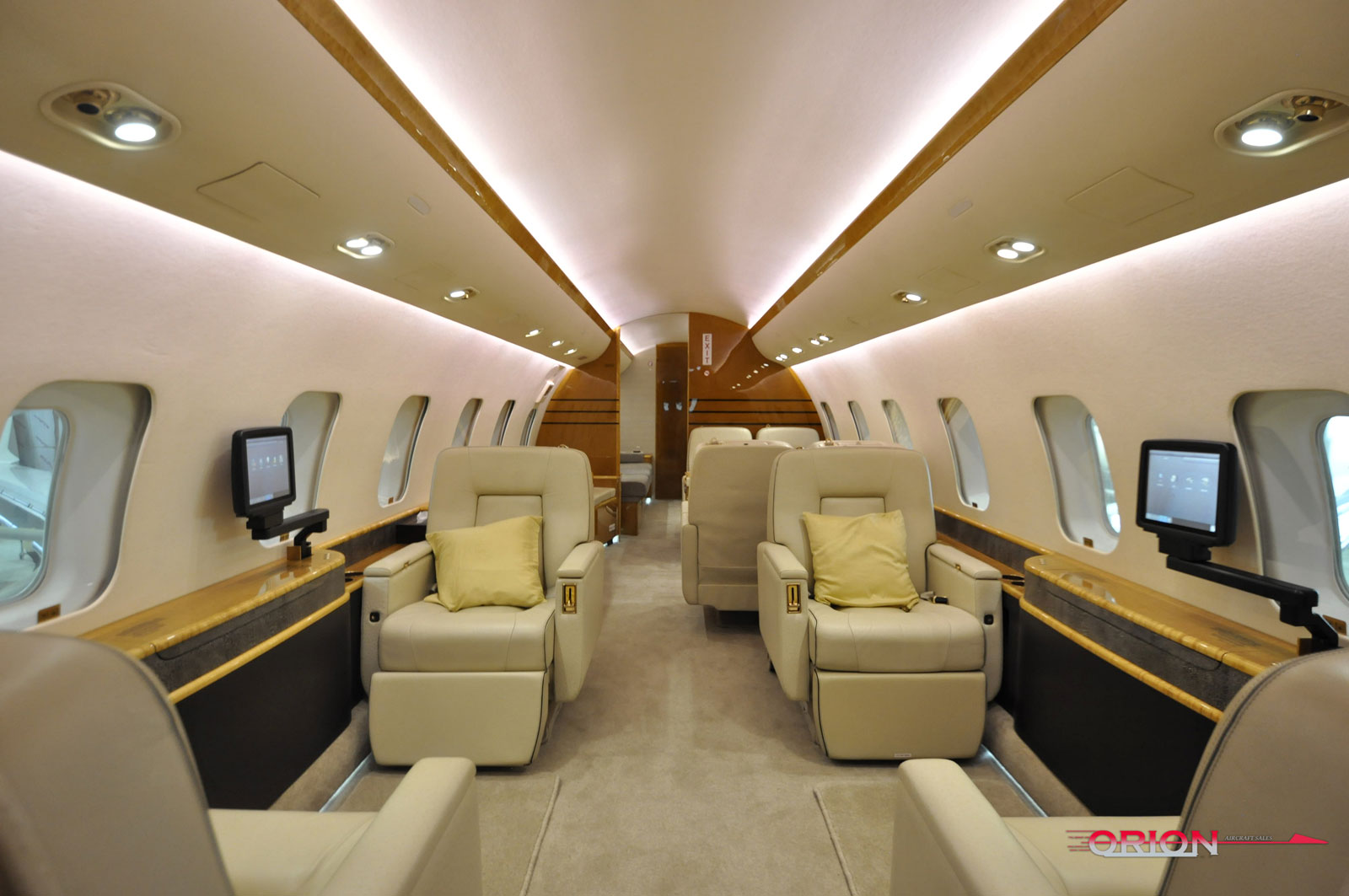

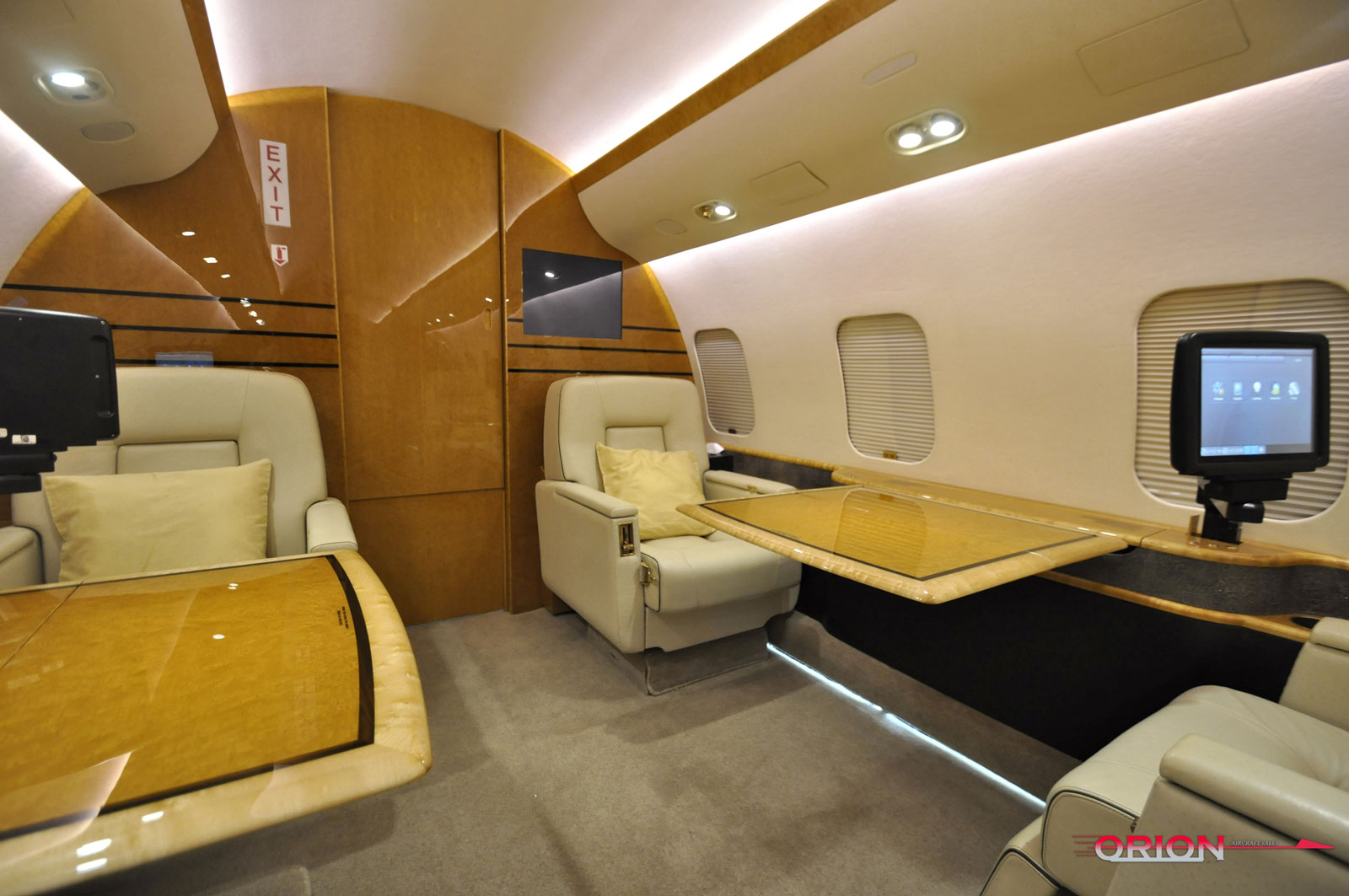

• Forward Four Place Club Seating With Pull Out Tables

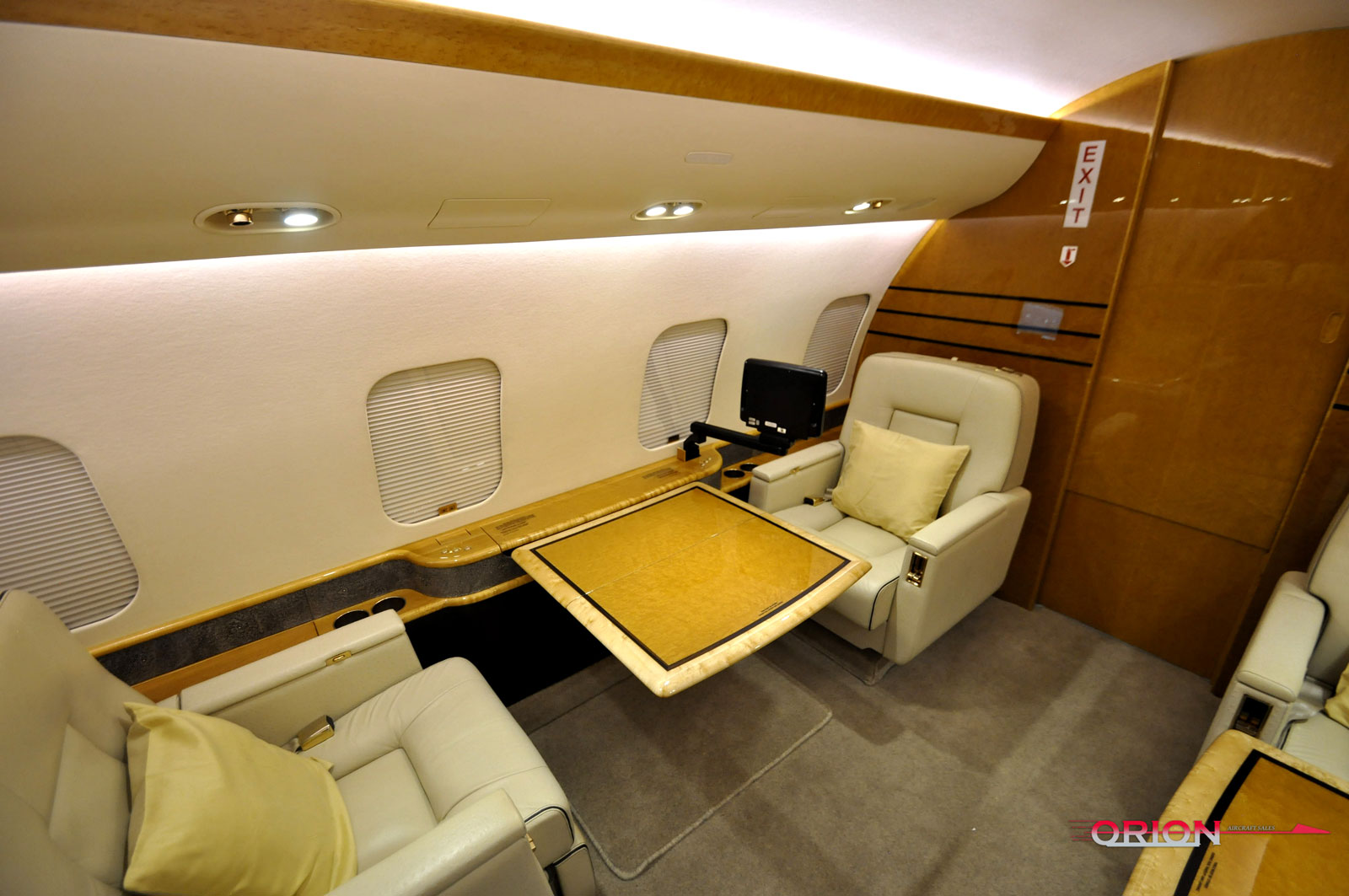

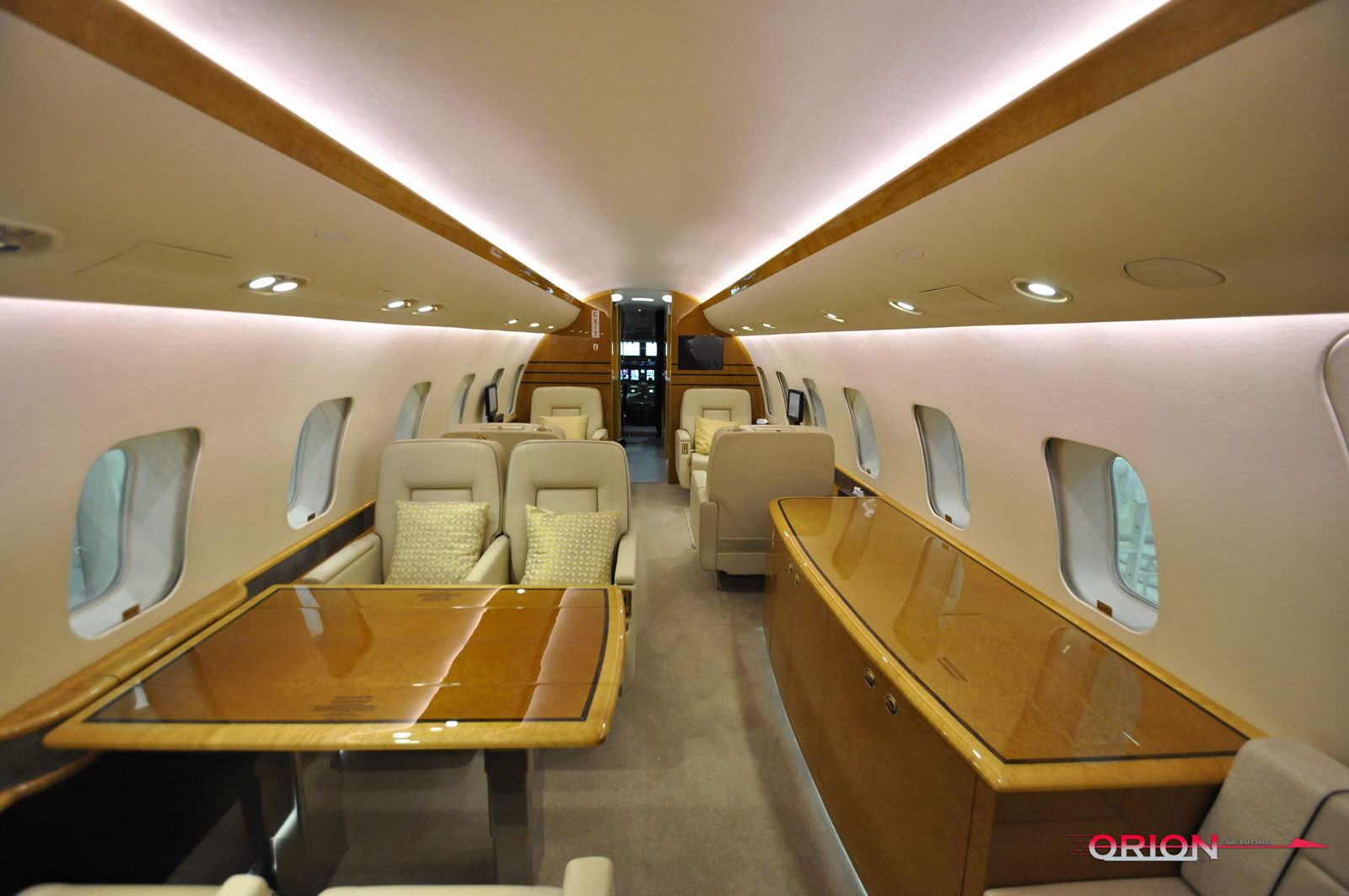

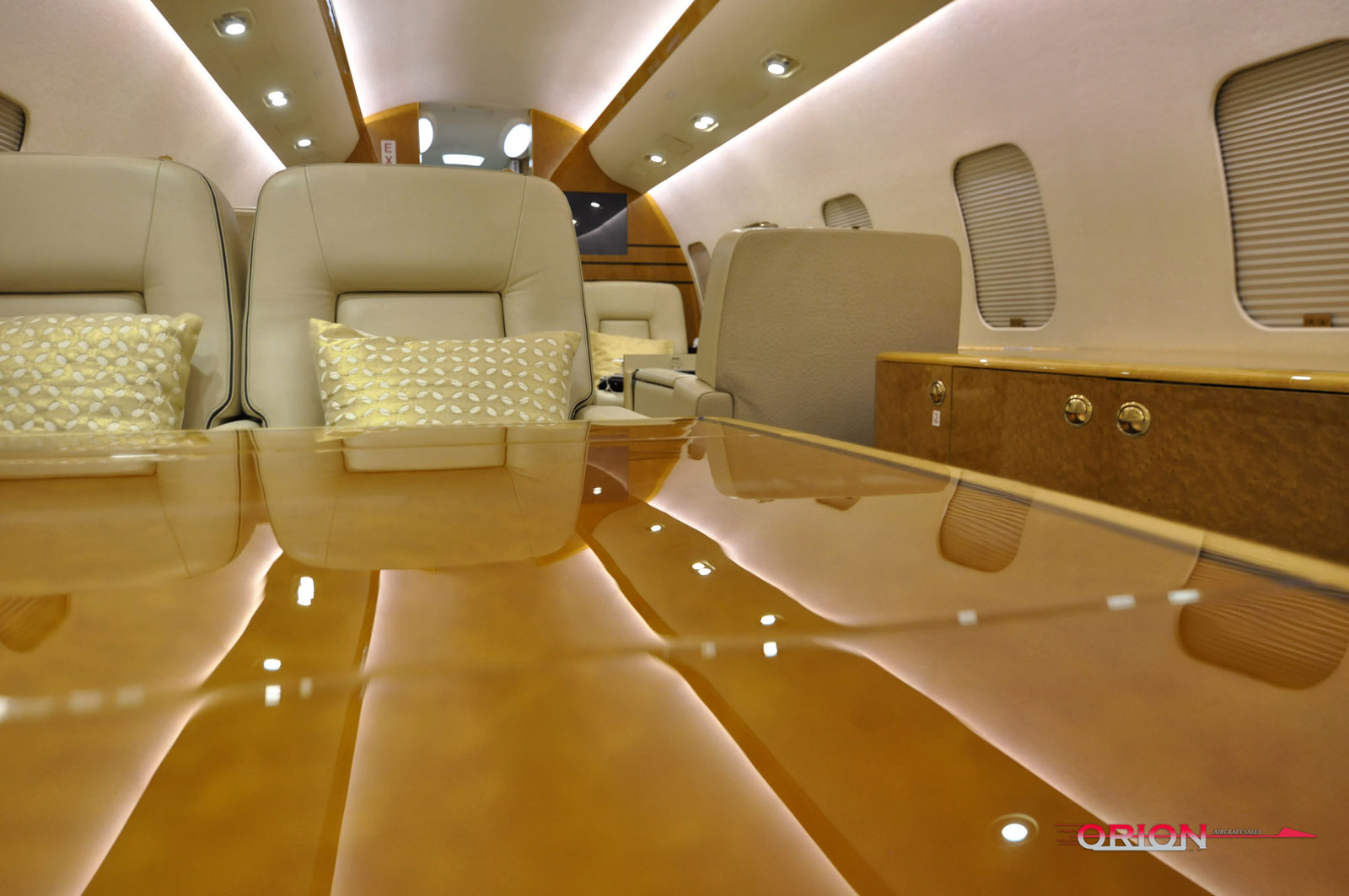

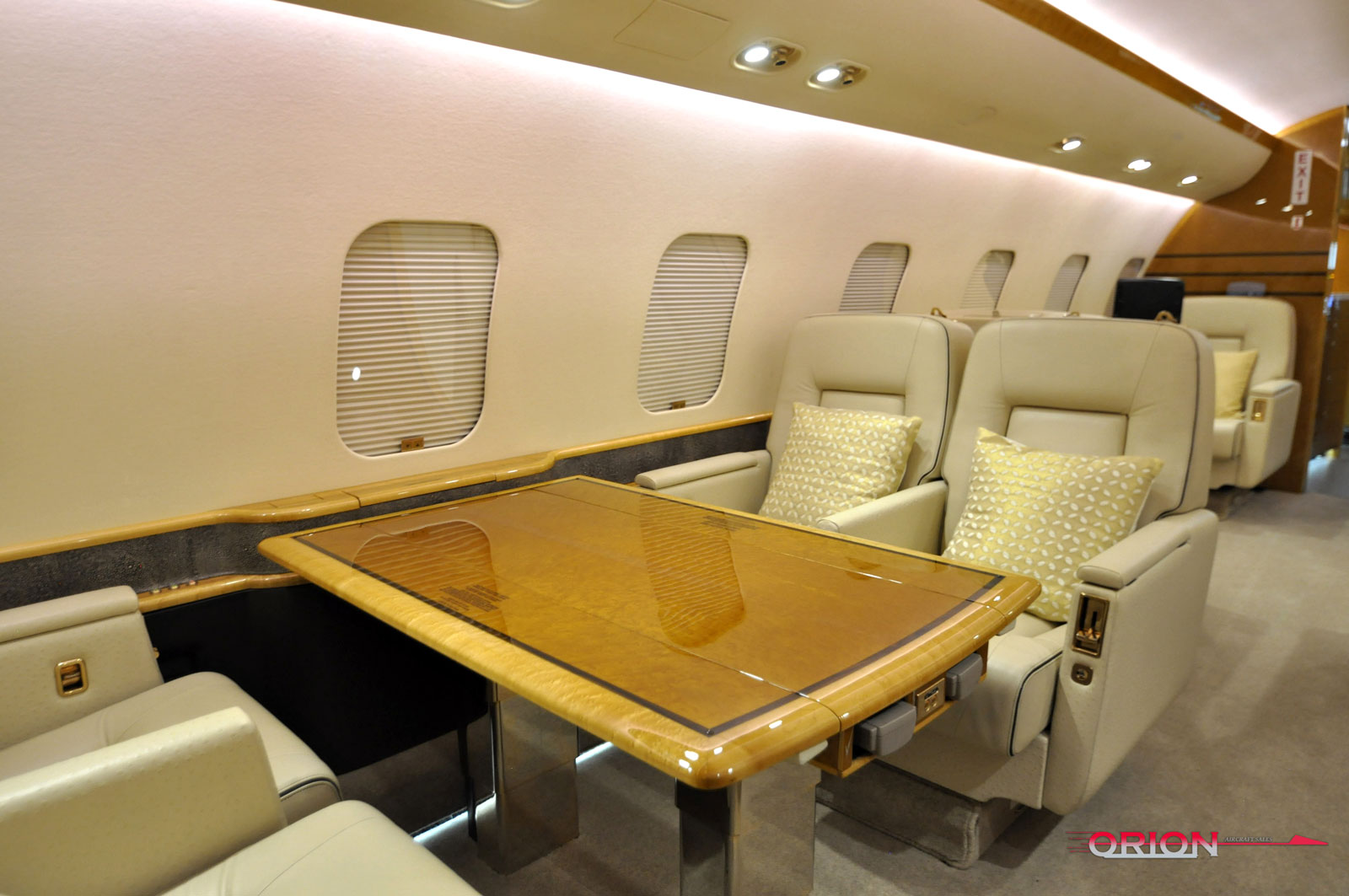

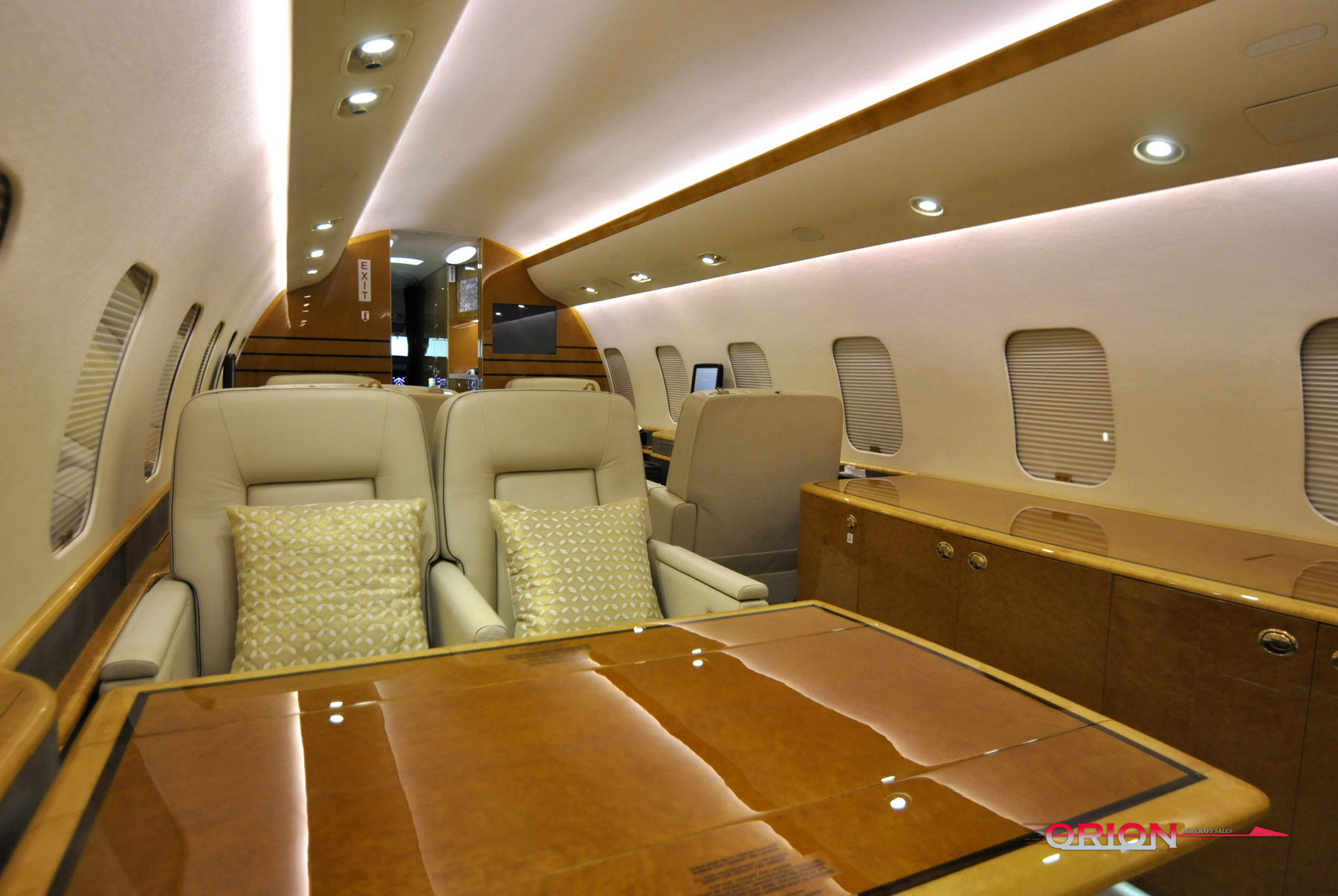

• Mid-Cabin Four Place Conference Group

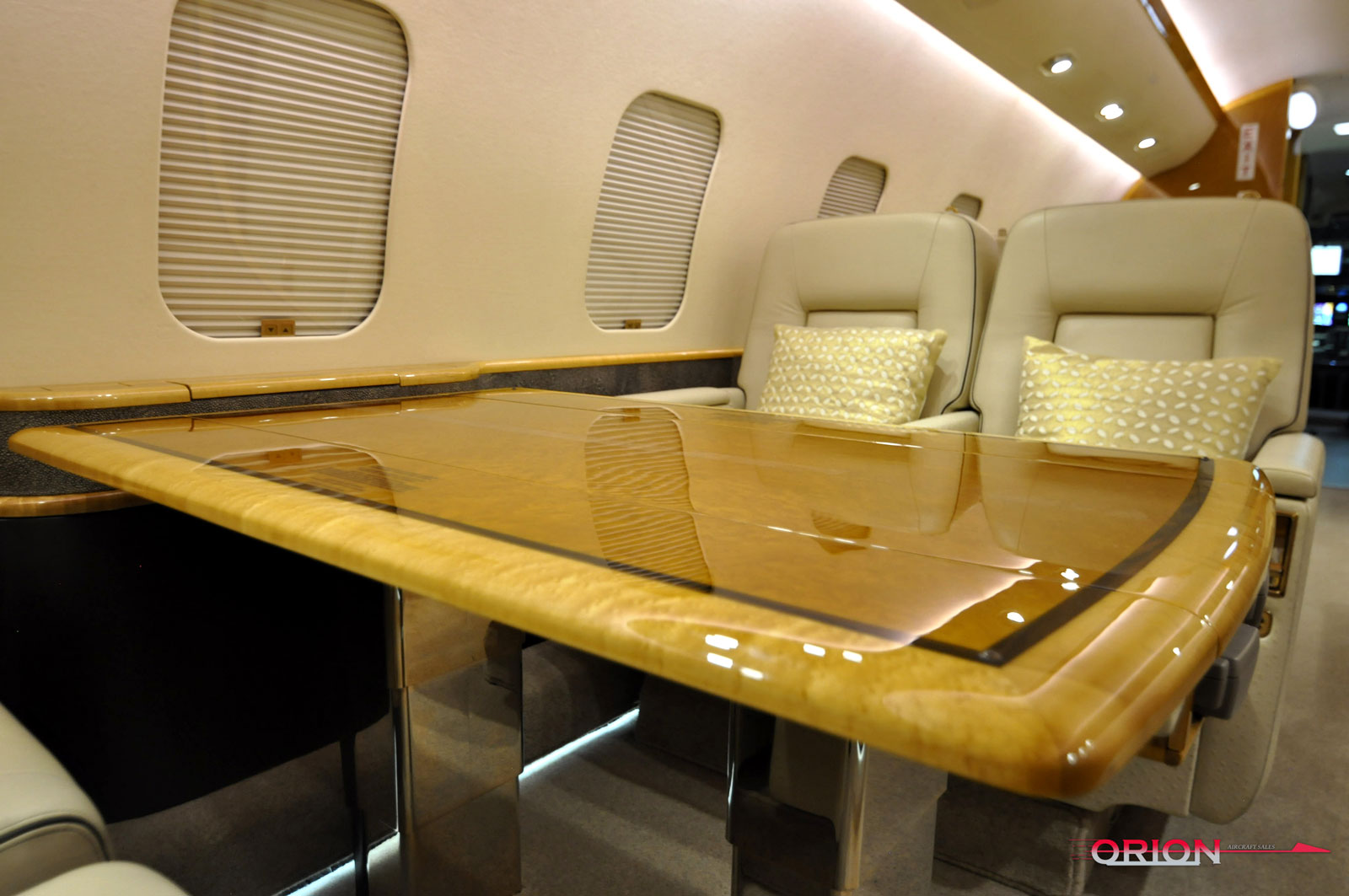

• Electric Hi/Low Conference Table

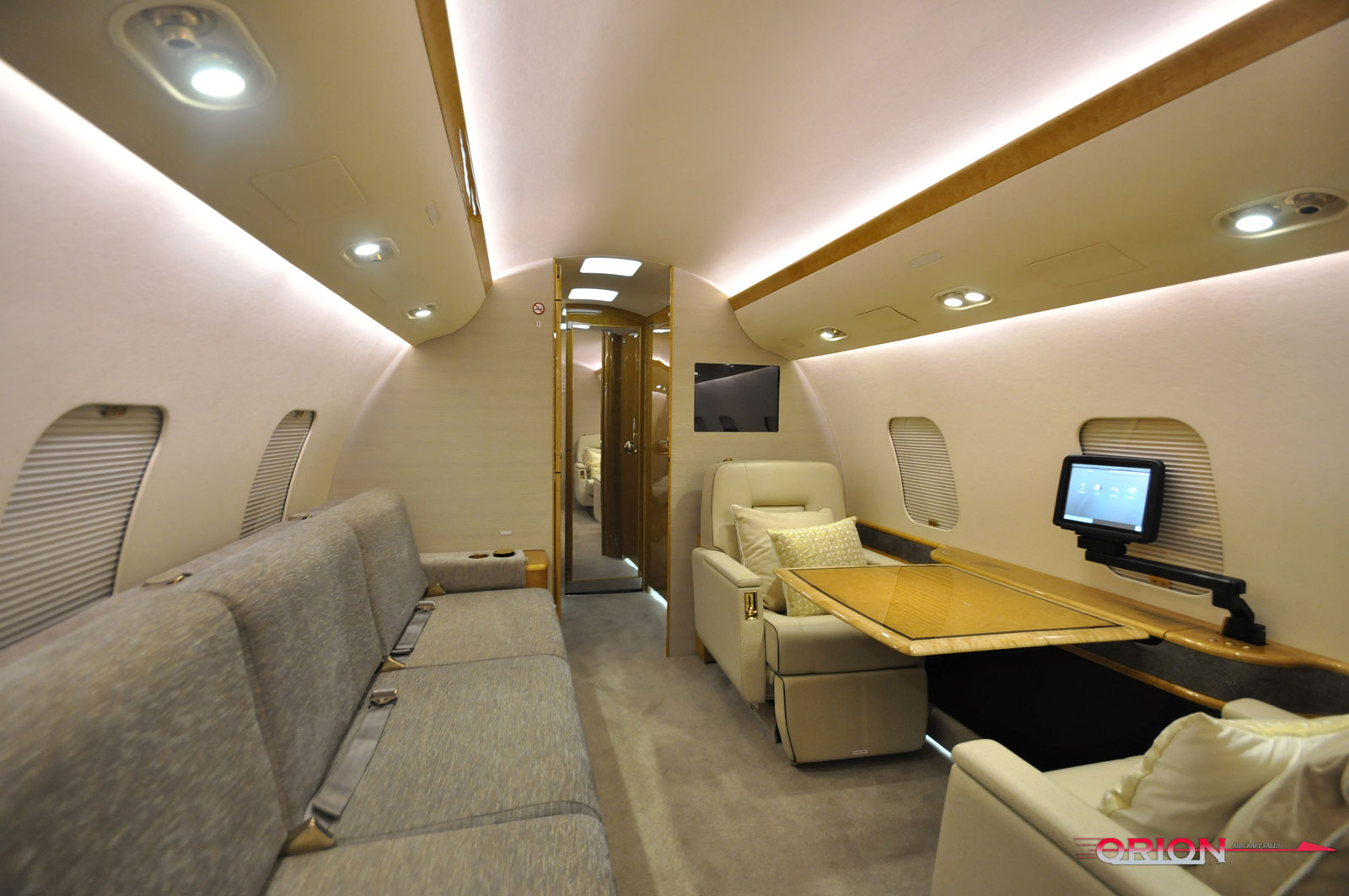

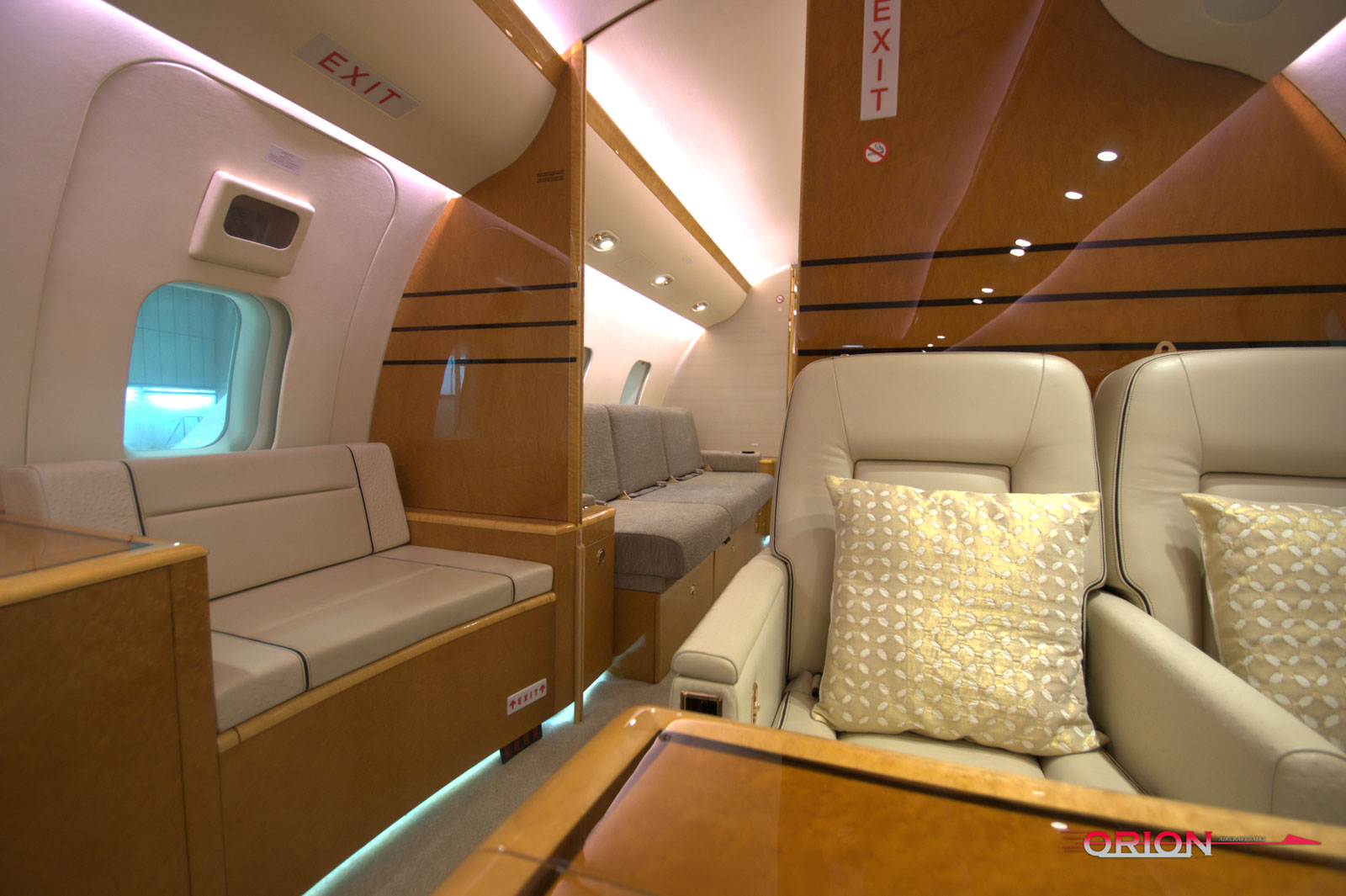

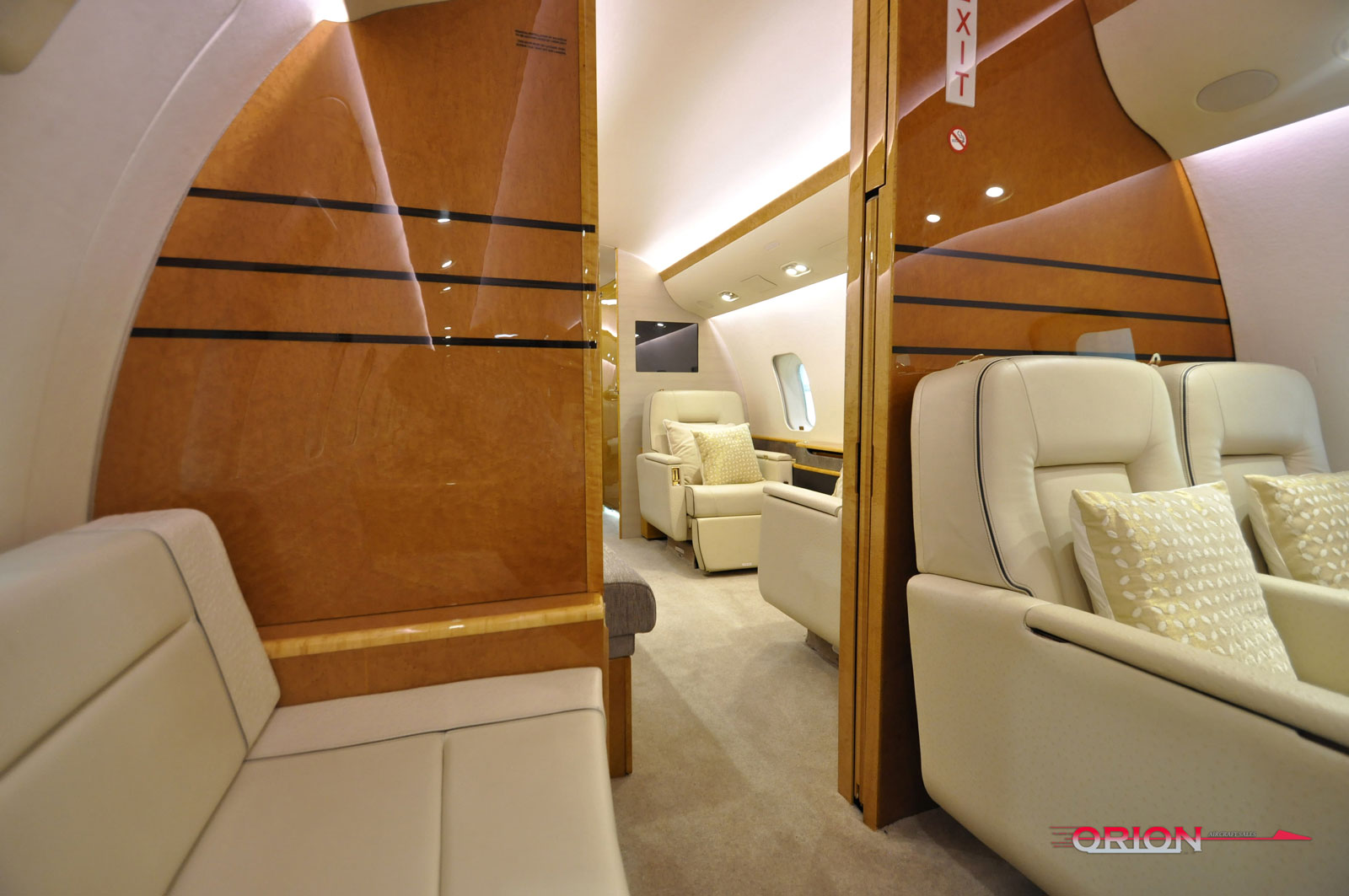

• Aft Cabin RH Three Place Berthable Divan 16G
• Aft Cabin Two Club Chairs Opposite Divan

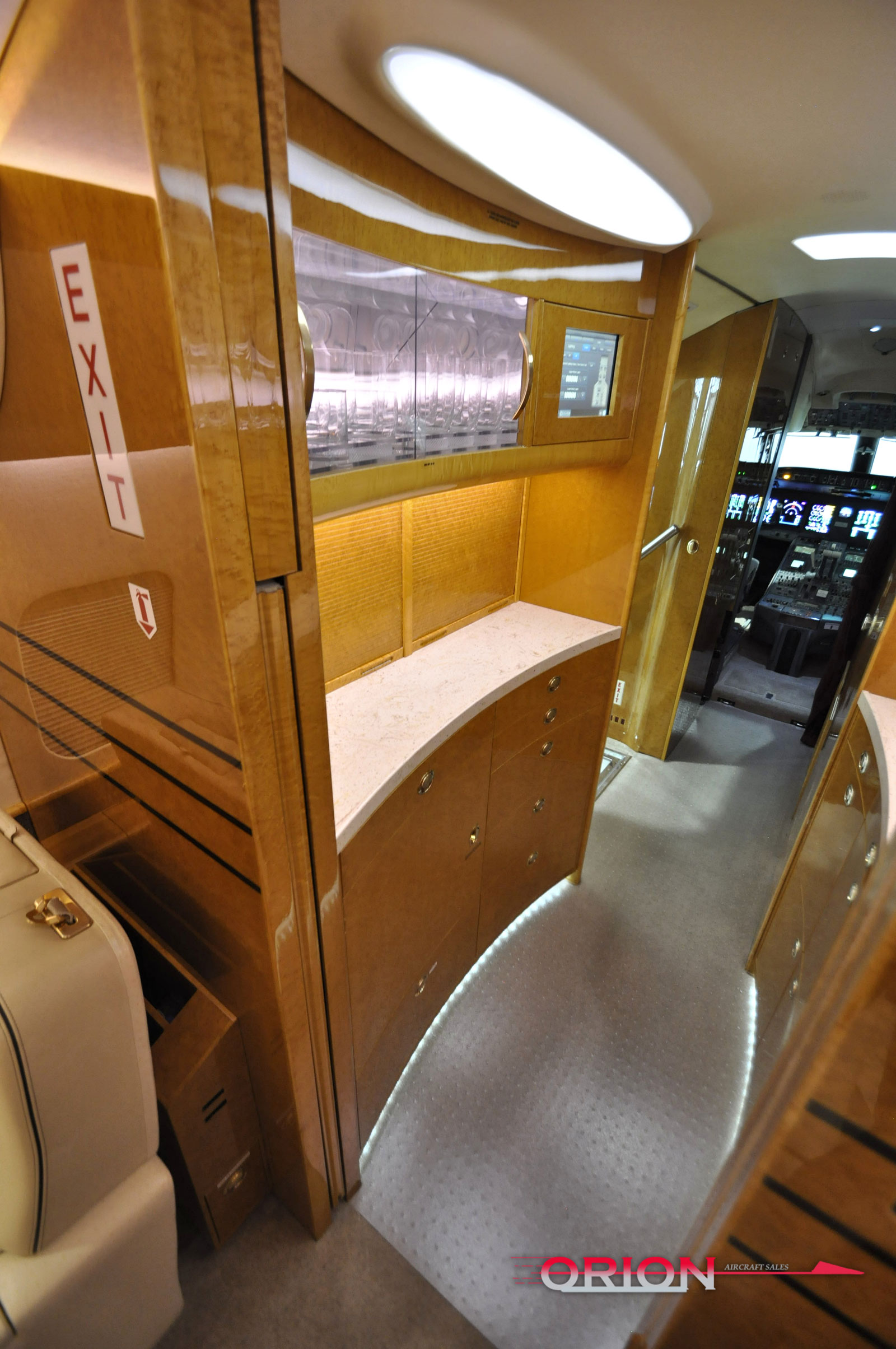

• Galley Location Forward Left Side
• Galley Sliding Pocket Door Forward Cabin
• Annex Galley Located Forward Right Side
• GALLEY EQUIPMENT: MICROWAVE, TIA HI TEMP OVEN, NESPRESSO MAKER, TIA COFFEE MAKER, CHILLER COLD FOOD STORAGE, DIVIDED ICE DRAWER, LARGE STORAGE CABINETS, GALLEY DECORATED LIGHTING, LARGE LIGHTED GLASSWARE STORAGE

ENTERTAINMENT & CONNECTIVITY

• HIGH SPEED DATA SYSTEM SWIFT (64KBPS)
• THREE AERO H+ CHANNELS
• COLLINS GLOBAL OFFICE (CES-5000)
• WIRELESS LAN NETWORK
• 10/100 BASE T ETHERNET NETWORK
• TWO BULKHEADS 21.3” COLLINS MONITORS
• TWO PLUG IN 10.4” TOUCHSCREEN MONITORS
• 21.3” POP-UP MONITOR RECEPTACLES
• EIGHT PLUG-IN MONITOR RECPTACLES
• 10.4” TOUCH SCREEN LCD IN GALLEY AND COCKPIT
• DUAL COMBO CD/DVD/MP3 (CREDENZA LOCATION)
• 3500VS / 115VAC / 60HZ POWER, & EU OUTLETS FAX/PRINTER/SCANER
• CABIN COMMUNICATIONS AERO A 3000B/ICS-100-PHONE SYSTEM

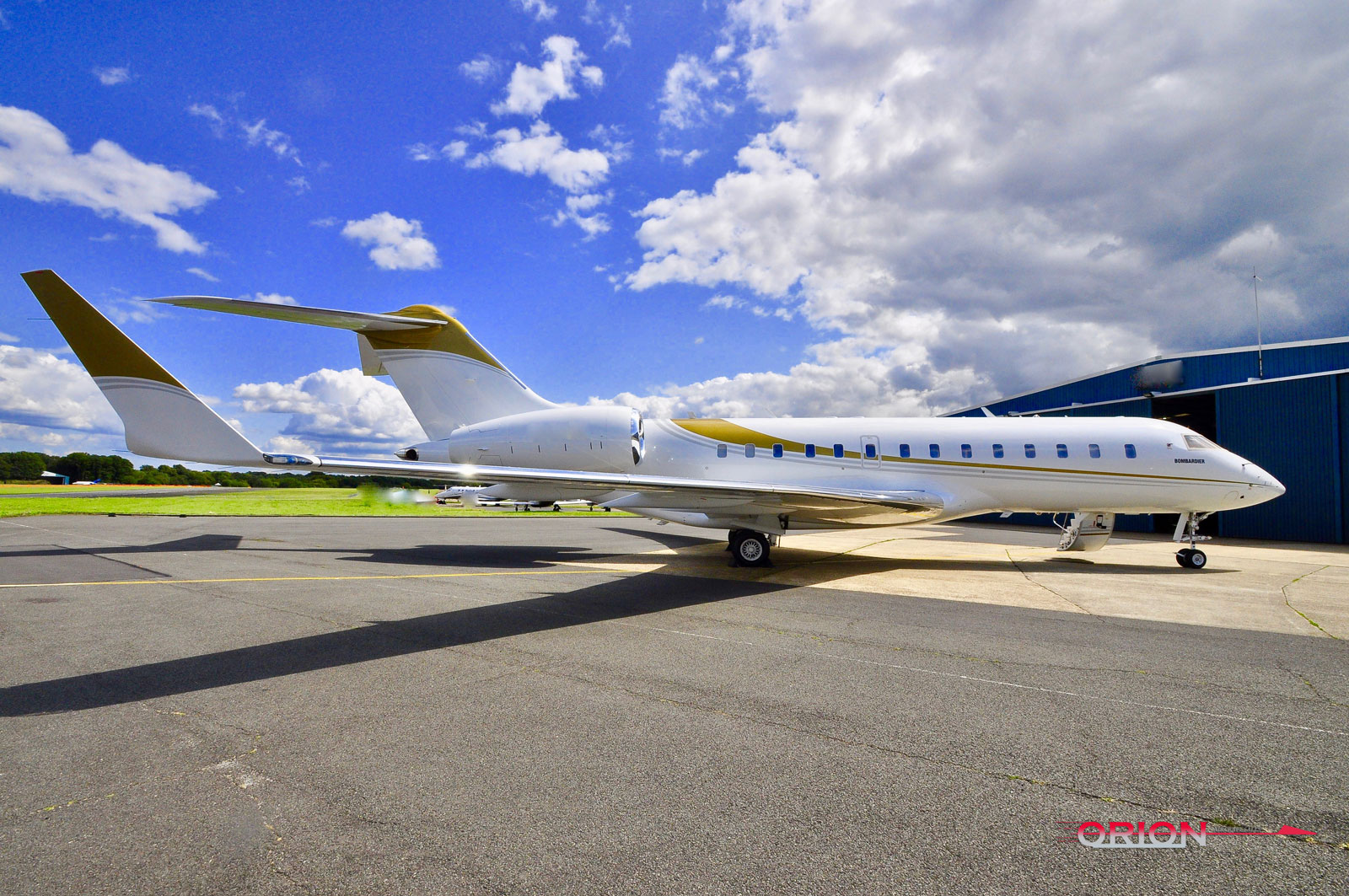

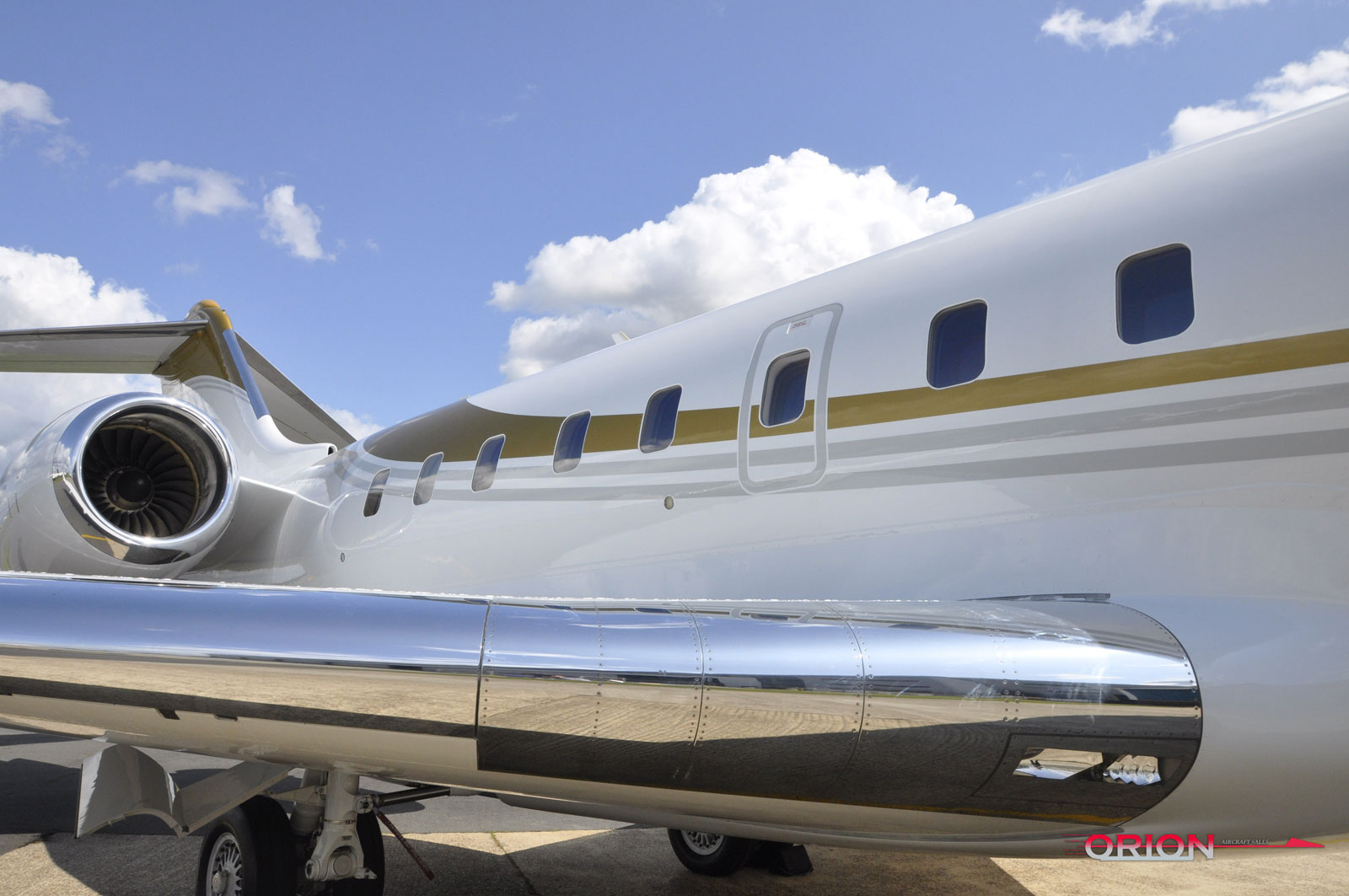

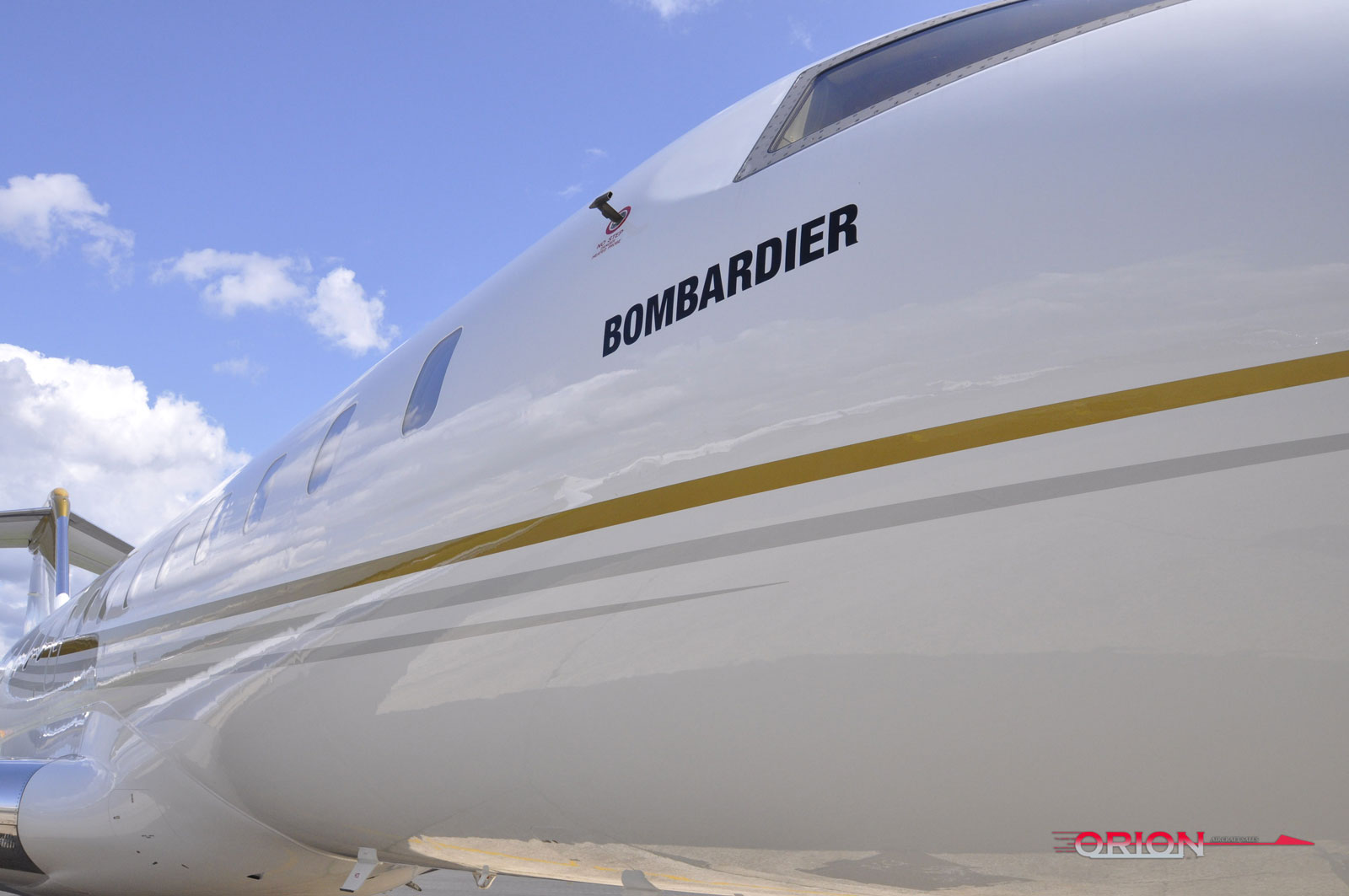

PAINT

• PAINT: New Paint August 2019. RAS Completions UK
• High Solid Primer
• Base: Matterhorn White
• Major Strip: Green Gold Metallic
• Accent Strip: Nordic Gray
• Clear Coat

PROGRAMS

• FAA/EASA
• Rolls-Royce CorporateCare©
• Smart Parts Plus
• APU Honeywell MSP
• CAMP

WEIGHTS

• Gross Weight: 92,500. LBS
• Empty Weight: 50,049
• Last Weighed: Aug 8, 2019

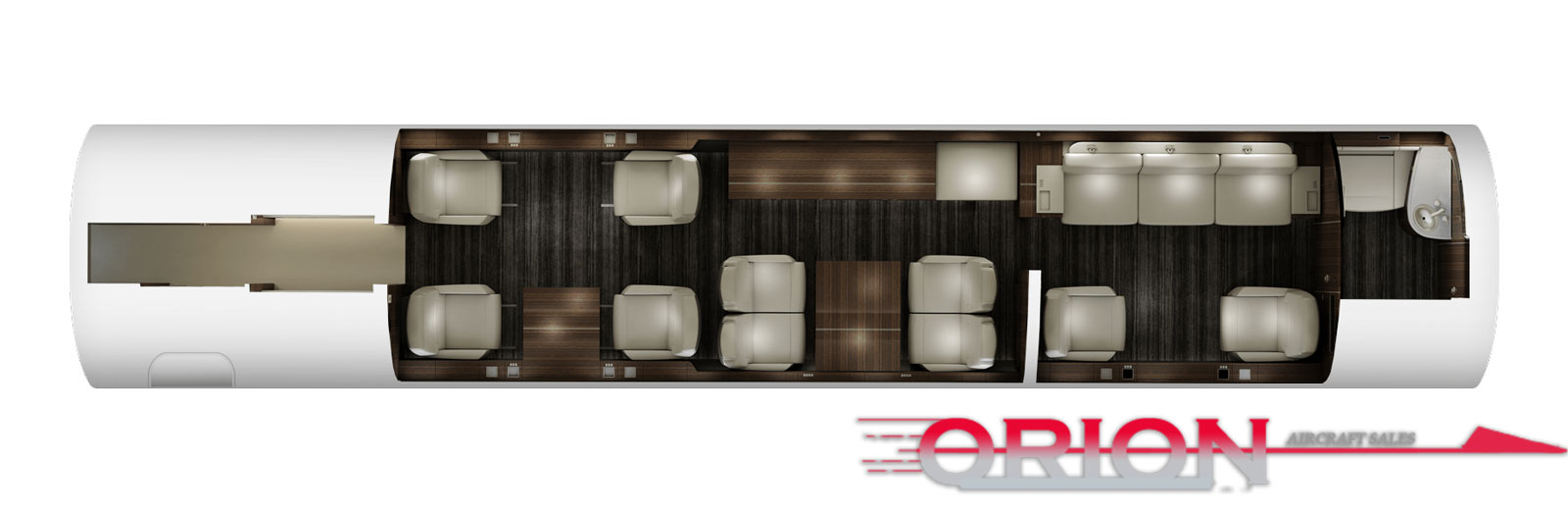

FLOOR PLAN

• 13 Certified Passengers Seating
• ***Reduced Cabin Altitude to 4,500 ft @ 45,000 Ft.

MAINTENANCE

MAJOR INSPECTIONS COMPLETED BY TAG AVIATION JULY 2019, 15/30/60/120 MO/8C,180 INSPECTIONS AND MAJOR SERVICE BULLETINS

• INSPECTIONS NEXT DUE:

  15 MO November 2020

  30 MO February 2022

  60 MO September 2024

  120 MO September 2029

  180 MO January 2035

• SERVICE BULLETIN COMPLIANCE July 2019
• SB 700-31-014 R-4 Batch 3
• SB 700-31-017 R-02 Batch 3.3
• SB 700-34-024 R-01 HUD: Heads Up Display
• SB 700-34-27 R-03 FMS: Fans 1/A+ and RPR 2 30/30
• SB 700-34-28 R-2 GPS: SBAS with LPV Approach Capability
• SB 700-34-036 R-3 ADS-B Automatic Dependent Surveillance
• SB 700-23-0004 R-B1 Cockpit Voice Recorder Added Capability
• SB 700-44-005 Cabin Electronics System Check
• SB 700-53-023 Rework Wing/Fuselage Fairing Sill to Prevent Corrosion
• SB 700-57-016 R-1 Special Check Modification Flaps-Inner
• Flaps Corrosion Protection and Drainage Improvement Parts A,B,C
• SB 700-27-28 R-1 Special Check Rework Rudder Control System, Yaw Damper
• SB 700-57-010 Mod Sealant & Water Drainage in Collector Box, LH/RH Wings
• SB 700-53-027 Mod. Aft Fuselage, Replacement and Reinforcement of Rudder Quadrant Box Assy Half Ribs
• SB 700-55-002 Modification Horizontal Stabilizer Drainage Holes
• SB 700-26-004 Modification Fire Extinguishing System
• SB 700-53-026 Rework Forward And Middle Access Belly Panels
• SB 700-54-004 R A-1 Nacelles/Pylon Lower Skin Access Panels Inspection Only

Disclosures

Specifications and/or descriptions are provided as introductory information only and do not constitute representation or warranties. Verification of specifications remain the sole responsibility of the purchaser. Aircraft is subject to prior sale, lease and/or removal from the market without prior notice. Aircraft Broker involvement is only acting as that of a “Broker “and not a Supplier or Seller.
