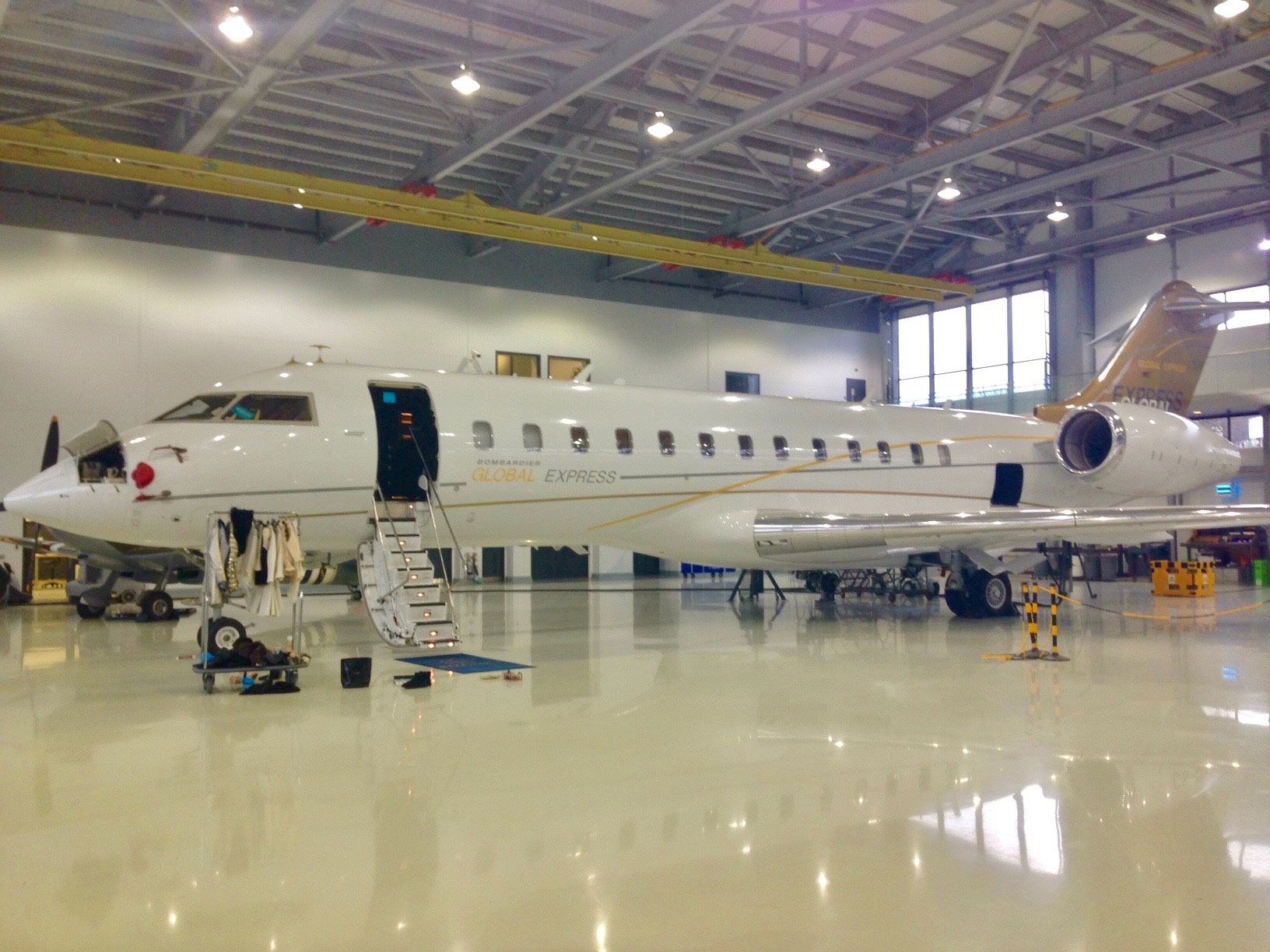

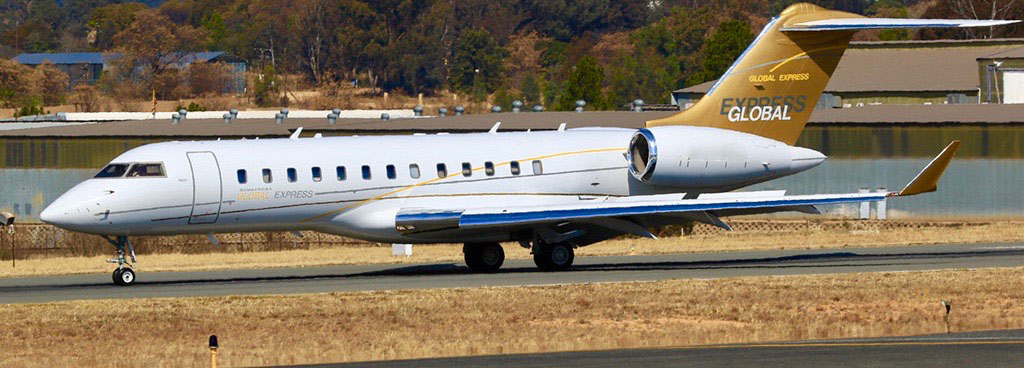

2002 BOMBARDIER GLOBAL EXPRESS 4700 TT

Download Specifications PDF
Stage Content Service

AIRFRAME

  • IN SERVICE DATE JULY 2002
  • AIRFRAME TOTAL HOURS: 4791 *3/2019
  • AIRFRAME TOTAL LANDING: 1765

ENGINES

  • Engines Rolls Royce BR710-A2-20
  • Rolls-Royce CorporateCare Program
  • ENGINE 1: TSN Hours 4791 1765 Cycles
  • ENGINE 2: TSN Hours 4791 1765 Cycles

APU

  • Honeywell RE220 (GX)
  • TOTAL TIME: 4167 Hours
  • APUS 4323 Starts *12/18/2018
  • Honeywell MSP

AVIONICS

  • Honeywell Primus 2000 XP Avionics Suite
  • EFIS: (6) 8”X7” DU-870 Displays, 2 PFD / 2 EICAS / 2 MFD
  • Honeywell Jetwave KA-BAND Sat / Data Systems. SB 700-44-011– (Jetwave KA-BAND Sat Honeywell Video)
  • WIFI: Rockwell Collins Stage Wireless Media Server System
  • ADS-B: SB700-34-062
  • GPS: SBAS-LPV SB700 34-054 R2
  • BATCH: 3.3 Fans’s 1A SB700-31-034 Rev 2
  • EICAS: Engine Indication/Crew Alerting System
  • DAU: Quadruple AMETECK DA-810 Data Acquisiton Units
  • IAC: Triple IC-800 (IAC) with EFIS Reversionary Capability
  • RMU: Dual Primus II RM-855 Integrated Radio Units
  • DUAL VOR (FM IMMUNE) ILS/MKR/ADF/DME/VHF COMM (8.33KHZ)
  • TRANSPONDERS: Dual Enhanced Mode S Diversity Transponders
  • COMS: 3RD VHF Comm. Installation (RCZ-833)
  • FMS: Triple NZ-2000 IFMC, FANS 1A RNP 4 30/30 SB700 34-053
  • IRU: Tripple HG-2001 Inertial Reference Units
  • IRIDIUM TELEPHONE SYSTEM
  • MADC: Tripple AZ-840 Micro Air Data Computers (MADC) Avionics
  • RAT: Dual Collins ALT-4000 Radio Altimeters
  • TCAS: 2000 Traffic Alert and Collision Avoidance System Change 7.1
  • HF: Dual Collins HF-9000 HF Communications System
  • SELCAL: Single Coltech CSD-714
  • RADAR: Primus 880 Color Weather Radar
  • LSS: LCZ-850 Lightening Sensor
  • WSI: AV-200 Weather Inflight Satellite System
  • HUD: New Heads Up-Display Upgraded Computer SB 700-34-050
  • PRINTER: Cockpit Thermal Sky-Printer
  • (Office Sky Option: SB 700-23-003)
  • SATCOM: MCS-7000 SATCOM ( 7 Channel 5 Voice, 2 Data)
  • ATS: Magnastar C-200 Airborne Telephone System w/6 Hand Sets
  • ADLU: Airborne Data Link
  • ACARS: Datalink
  • CAIMS: Central Aircraft Information Maintenance System
  • EGPWS: Honeywell Mark V EGPWS Enhanced
  • FDR: Honeywell SSFDR Flight Data Recorder
  • CVR: Honeywell SSCVR Cockpit Voice Recorder
  • ELT: ARTEX 406HZ Emergency Location Transmitter w/NAV Interface

INTERIOR

  • REFURBISHMENT COMPLETED IN 2015

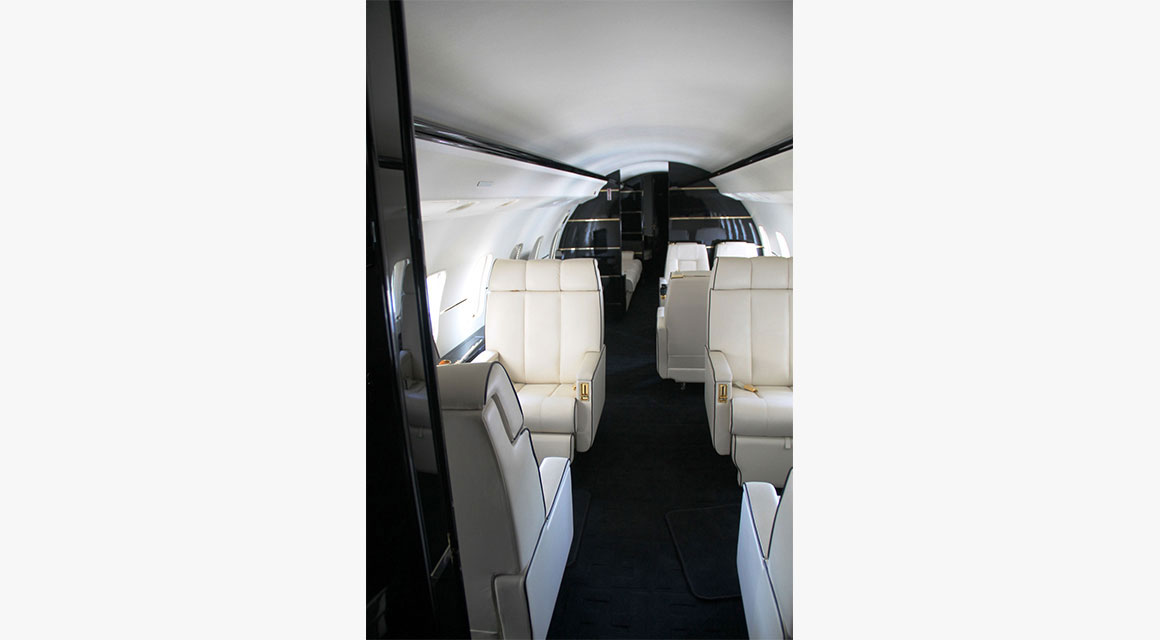

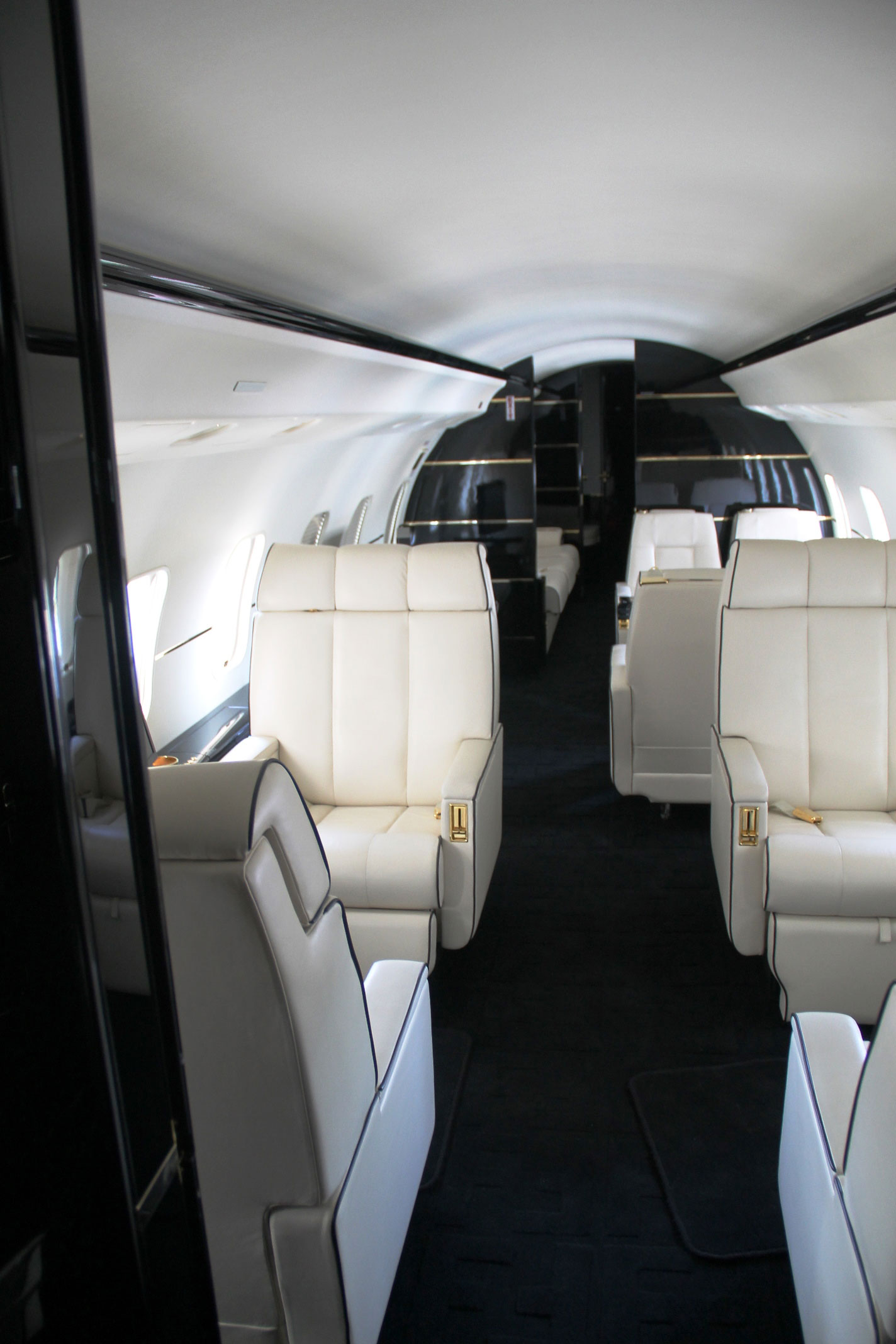

  • Forward Four Place Club with Two Fold Out Tables, All Four Chairs Fully Berthable, Incorporate Flexwing Headrests, Recliner-Style Leg Rest, Pneumatic Lumbar Controls, and Bulkhead 18” TV Monitor
  • MID CABIN Consist Of a Four-Place Conference Grouping w/Hi-Low Table, Credenza Housing Dual DVD Systems, 18” Pop-Up Monitor, and Fax/Copy Machine

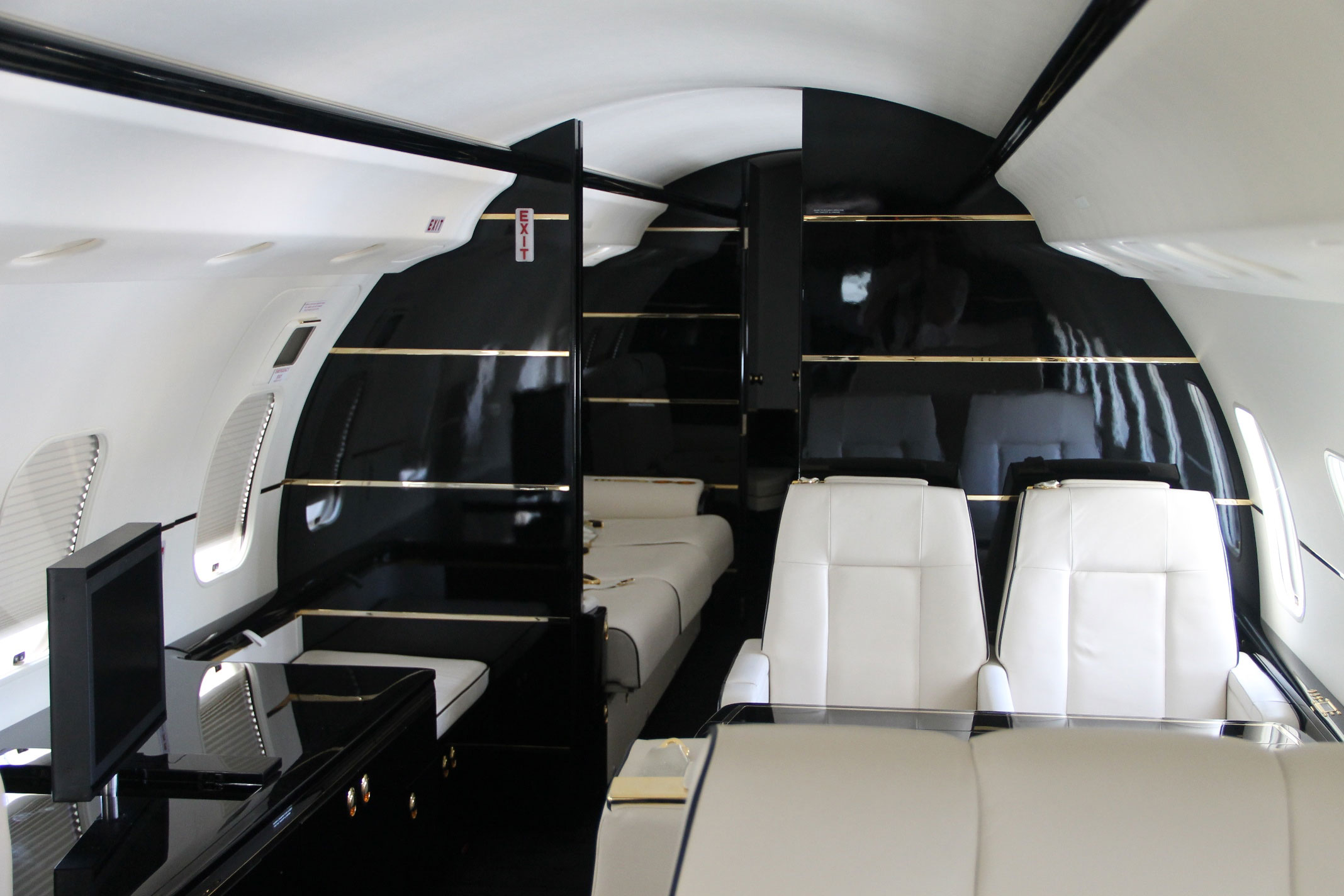

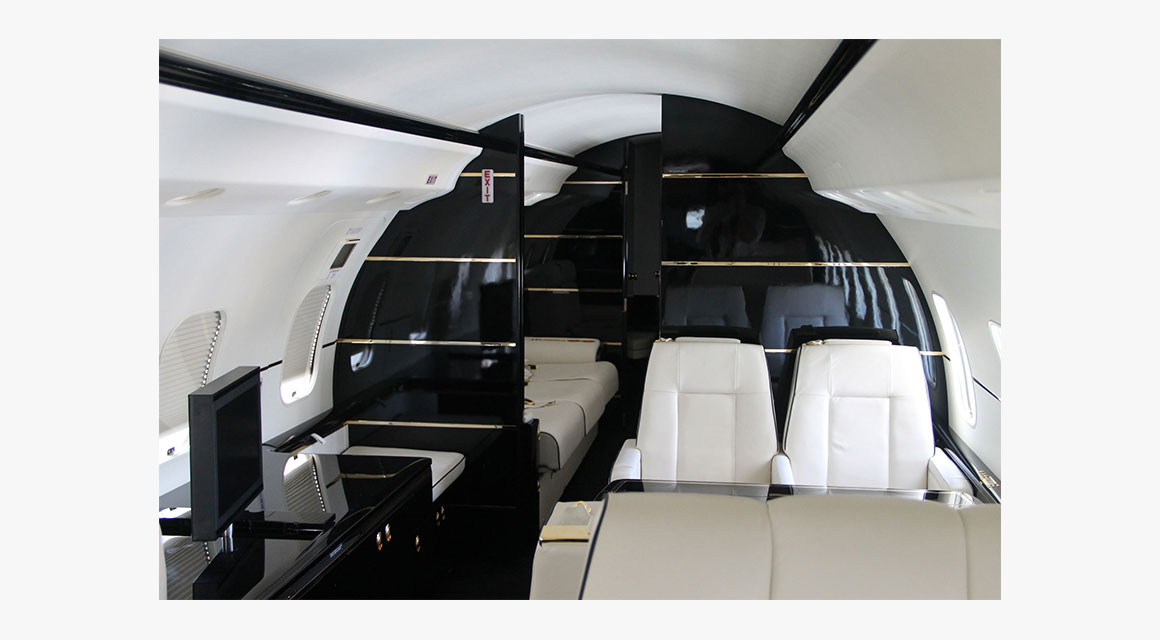

  • AFT CABIN separates Main Cabin via bulkhead with Pocket Doors, includes Two Three Place Fully Berthing 80” Divans, and One 18” Monitor.
  • FULL SERVICE GALLERY includes Annex w/ 6.5” Video Plug in Monitor, Oven, Chiller, Microwave Oven, Expresso & Coffee Machine, Remote Galley Box, 26 Gallon Water Tank Froward, Pronto Touch Screen Monitors
  • AMMENITIES Crew Rest Area, Forward Crew Lavatory, Private Aft Lavatory w/ Edge Lighted Vanity, Storage Closet, Inflight Access to Aft Baggage Compartment. Interior Completed By The Bombardier Completion Center – Tucson, AZ.

AIRCRAFT WEIGHTS

  • Gross Weight: 98,000. LBS.

PAINT

  • PAINT: 2012 Aircraft was painted using the following colors. Overall Matterhorn White with Black, Edison Yellow colors. *The Paint was Touched Up After The 12c Inspection July 2018

EQUIPMENT

  • WIFI: JETWAVE KA BAND / SB 700-23-041 R 2 Modification
  • SECURAPLANE: Camera, Fin Camera
  • KEYLESS ENTRY
  • ENTRY Area Heated Floor
  • FORWARD / AFT Lavatory
  • CREW 115VAC 60hz Outlets
  • MODULAR Electric Shades
  • AIRSHOW Network, Dual 10.4” T.V Monitors, RH/AFT 18” Monitors (2) 6.5” T.V Monitors Touch Screen Cabin Management System (CMS) (4 ea), Direct TV with North American and European Satellite Coverage
  • JUMP Seat with Audio Panel
  • PULSE Lights/Logo Lighting
  • COCKPIT Refuel/Defuel Panel

MAINTENANCE

4500hr/12/15/30/60/180 Mo Completed July 2018 (4246 Hr’s)

  • SB700-23-041 JETWAV RADOM
  • SB700-44-011 R1 SAT COMUNICATIONS JETWAVE KA BAND
  • AES700-4836 ROCKWELL/COLLINS STAGE WIRELESS MEDIA
  • SB700-31-030 REV 4 IAC BATCH 3 UPGRADE
  • SB700-31-034 REV 2 BATCH 3.3 IAC UPGRADE
  • SB700-34-050 R1 HEADS UP DISPLAY NEW COMPUTER
  • SB700-34-053 R2 GPS SBAS WITH LPV APPROACH
  • SB700-34-062 R3 MODIFICATIONS ADS-B OUT
  • SB700-34-06 TCAS 7.1

PROGRAMS

  • EASA
  • Rolls-Royce CorporateCare
  • Smart Parts Plus
  • APU Honeywell MSP
  • CAMP

DISCLOSURE

Specifications and/or descriptions are provided as introductory information only and do not constitute representation or warranties. Verification of specifications remain the sole responsibility of the purchaser. Aircraft is subject to prior sale, lease and/or removal from the market without prior notice. Aircraft Broker involvement is only acting as that of a “Broker “and not a Supplier or Seller.
