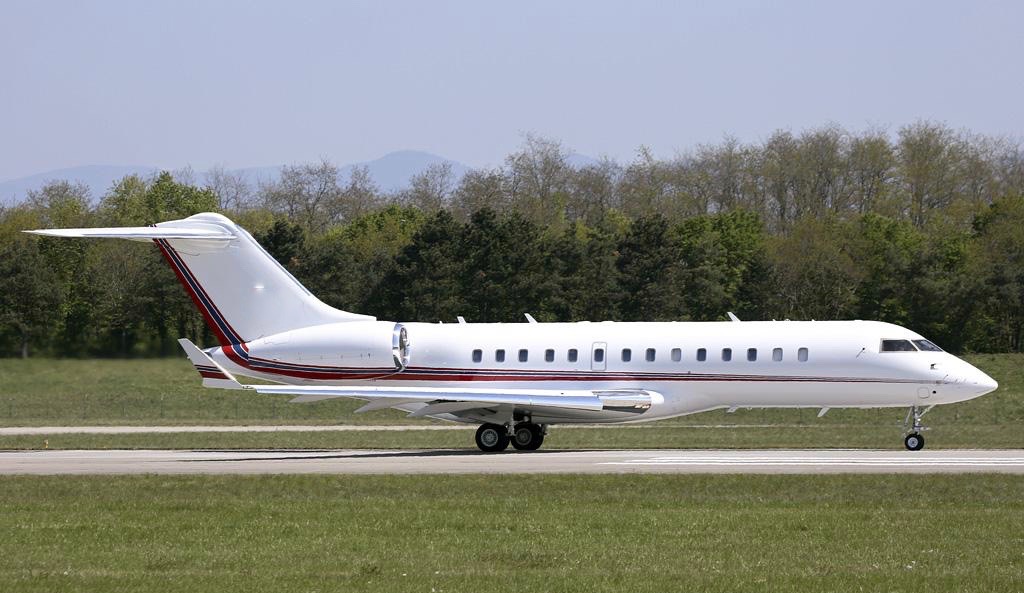

2005 BOMBARDIER GLOBAL EXPRESS

AIRFRAME

• TOTAL HOURS SINCE NEW 3581
• TOTAL LANDINGS SINCE NEW 1140

ENGINES

• ROLLS ROYCE BR700-710A2-20
• ENGINE 1 TOTAL HOURS SINCE NEW 3,537 , TOTAL CYCLES 1166
• ENGINE 2 TOTAL HOURS SINCE NEW 3,581 , TOTAL CYCLES 1180
• ENGINES ON CONDITION
• FADEC WITH EEC

APU

• HONEYWELL RE220 (GX)
• APU TOTAL TIME SINCE NEW 2,657 Hours
• PROGRAM COVERAGE HONEYWELL - MSP

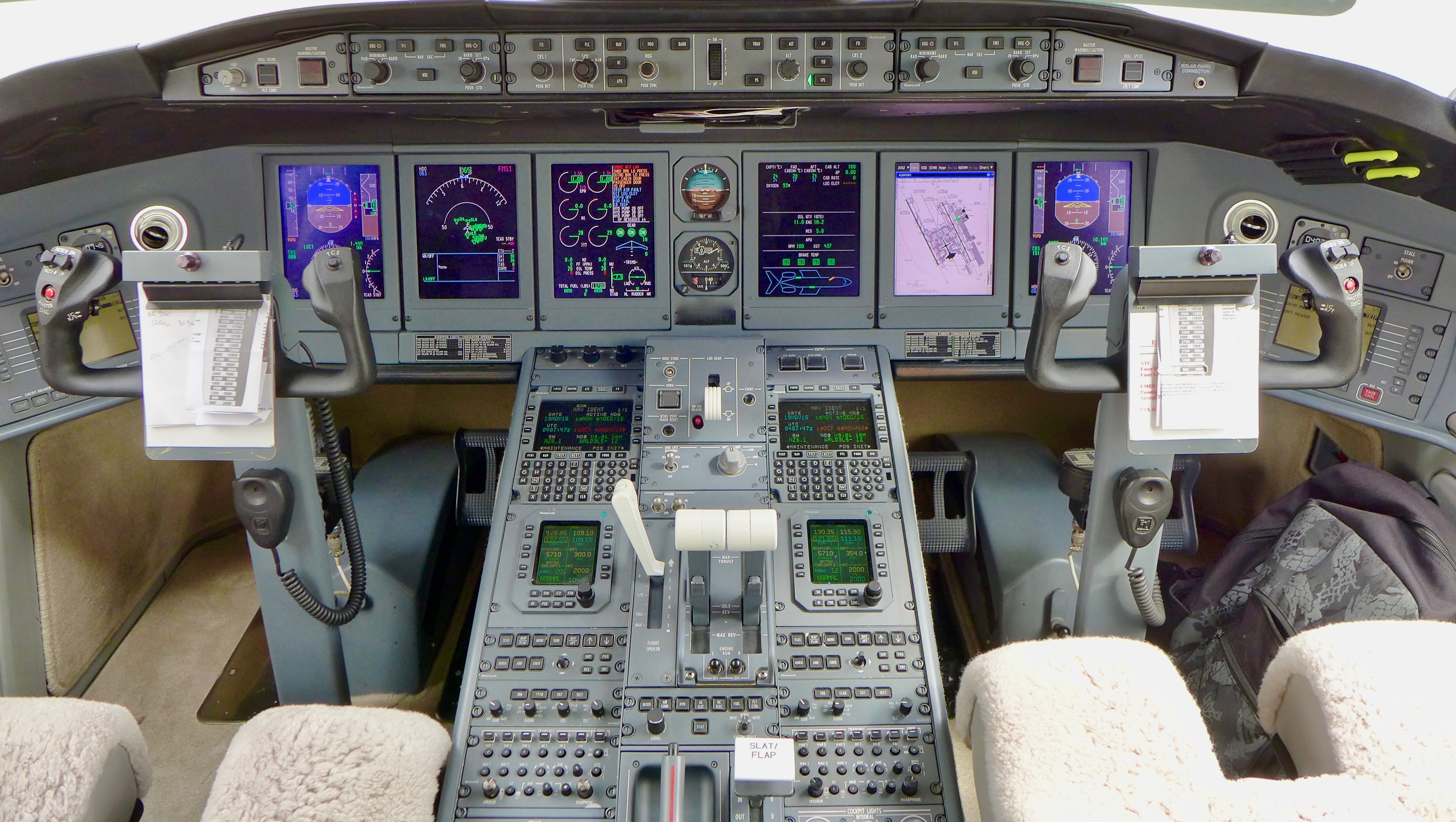

AVIONICS

• HAPP HONEYWELL AVIONICS PROTECTION PLAN
• HONEYWELL PRIMUS 2000XP AUTOMATIC FLIGHT CONTROL SYSTEM WITH AUTO-THROTTLES WITH AUTOPILOT EMERGENCY DESCENT MODE, WINDSHEAR ESCAPE GUIDANCE
• EFIS ( ELECTRONIC FLIGHT INSTRUMENTATION SYSTEM) UPGRADED 2015 PRIMUS ELITE SIX TUBE DU-875 LCD DISPLAYS , DL1000 DATA LOADER , SKY PRINTER, MOVING MAP , JEPPESEN CHARTS – (DU-875 Honeywell Video)
• RAAS (HONEYWELL RUNWAY AWARENESS ADVISORY SYSTEM)
• PILOT AND COPILOT ELECTRONIC FLIGHT BAG’S
• FMS (Flight Management System) Dual Honeywell NZ-2000) with Data Loader
• GPS Dual Honeywell GP-550 / SBAS WITH LPV SB 700-34-054
• IRU (Inertial Reference Unit) Triple Honeywell Laseref IV
• MADC (Micro Air Data Computer) Triple Honeywell AZ-840
• NAV (Navigation Radio) Dual Honeywell RNZ-851
• DME (Distance Measuring Equipment) Dual Honeywell RM-855
• EICAS (Engine Indication and Crew Alerting System) Single Honeywell
• ADF (Automatic Direction Finder) Dual Honeywell AT-860
• ADLS (Airborne Data Link)
• RMU (Radio Management Units) Dual Honeywell RM-855
• HUD (Heads Up Display) Single Thales Computer Update SB 700-34-050
• VHF COM (Very High Freq. Communication) Triple Honeywell RCZ- 833 w/8.33 KHz spacing
• HF COM (High Freq. Communications) Dual Rockwell Collins HF-9031A
• SELCAL (Selective Calling System) Single Coltech CSD-714
• SATCOM (Satellite Communications) Single Honeywell MCS-6000
• FLIGHT-PHONE ( Teledyne Magnastar C 2000 Digital Phone) Four Handset’s
• RADAR (Radio Detection and Ranging) Single Primus 880 Color WX Radar
• RADAR ALT (Radar Altimeter) Dual Rockwell Collins ALT-4000
• XPNDR (Transponder) Dual Honeywell Mode S MEETS EU CONTROL SB700-34-039
• EGPWS (Enhanced Ground Proximity Warning System) Single Honeywell Mark V
• TCAS (Traffic Collision Avoidance System) Single Honeywell RT-950 Change 7.1
• CVR (Cockpit Voice Recorder), Stores Data Link Messages SB 700-25-037
• FDR (Flight Data Recorder) Single Honeywell Solid State FDR Crew Force SB 700-31-020
• ELT (EMERGENCY LOCATOR TRANSMITTER) Artex 406 ELT
• LIGHTING SENSOR SYSTEM HONEYWELL LSZ-860
• RVSM MNPS
• ADS-B OUT RNP 1/5/10 SB 700-34-062
• BATCH 3. CPDLC SB 700- 31-030
• FANS-1/A + RNP 4 30/30 SB 700-34-53 @ 54
• WAAS (WIDE AREA AUGMENTATION SYSTEM)

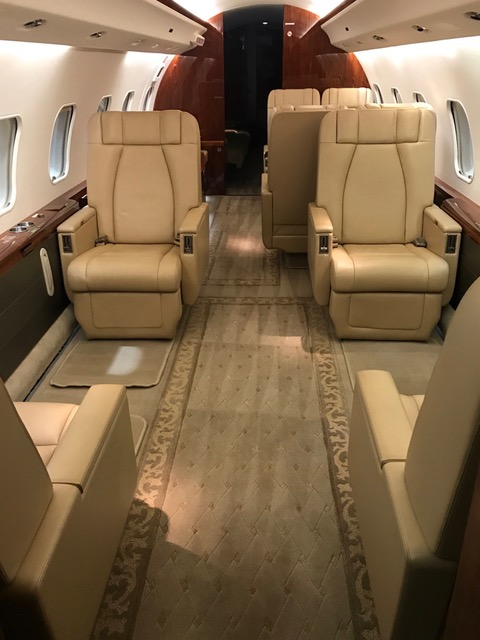

INTERIOR

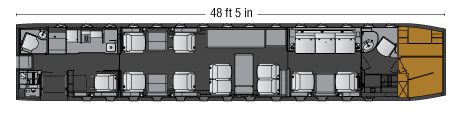

• THIRTEEN PASSENGER CONFIGURATIONS
• GALLEY LOCATION FORWARD

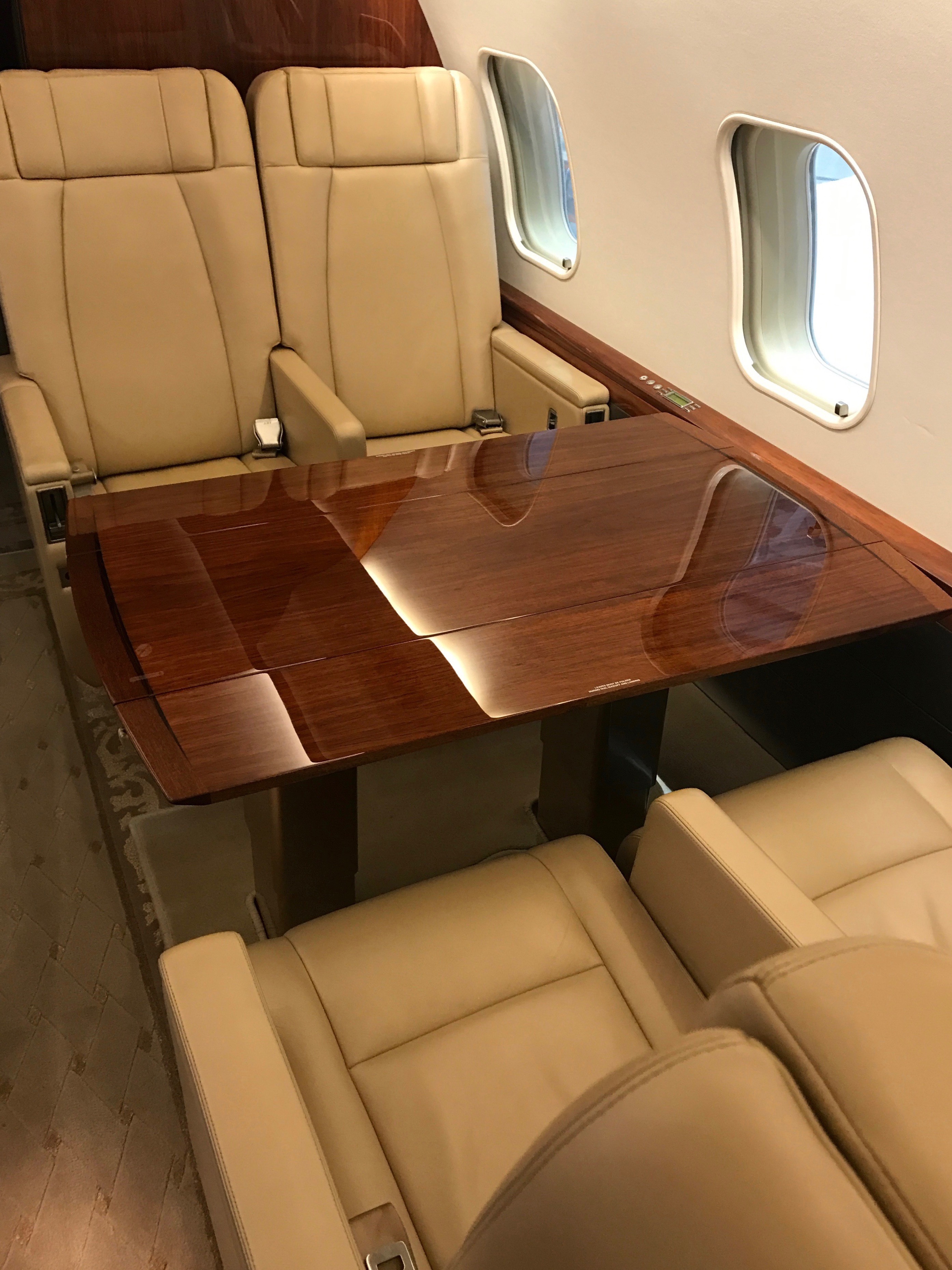

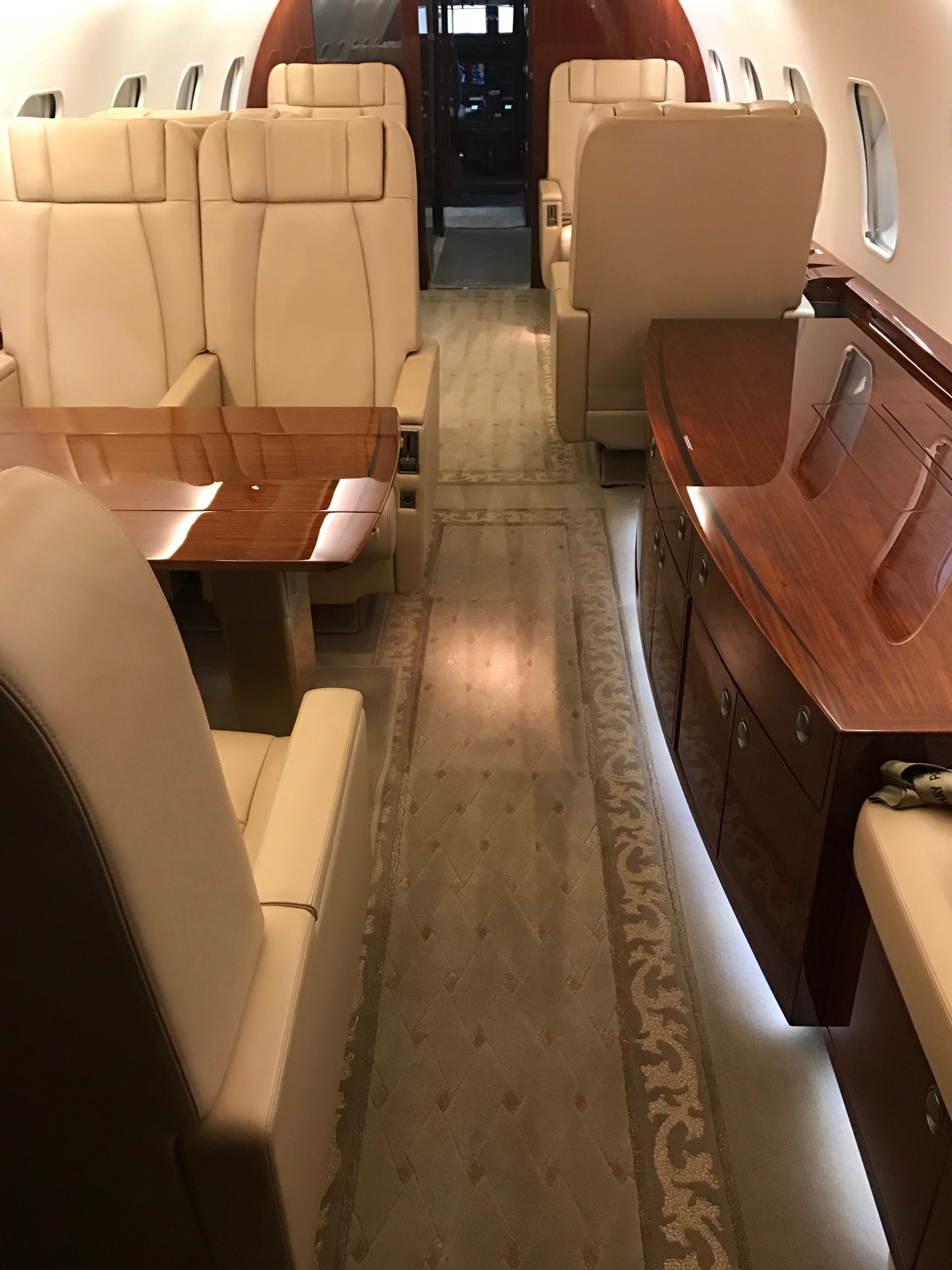

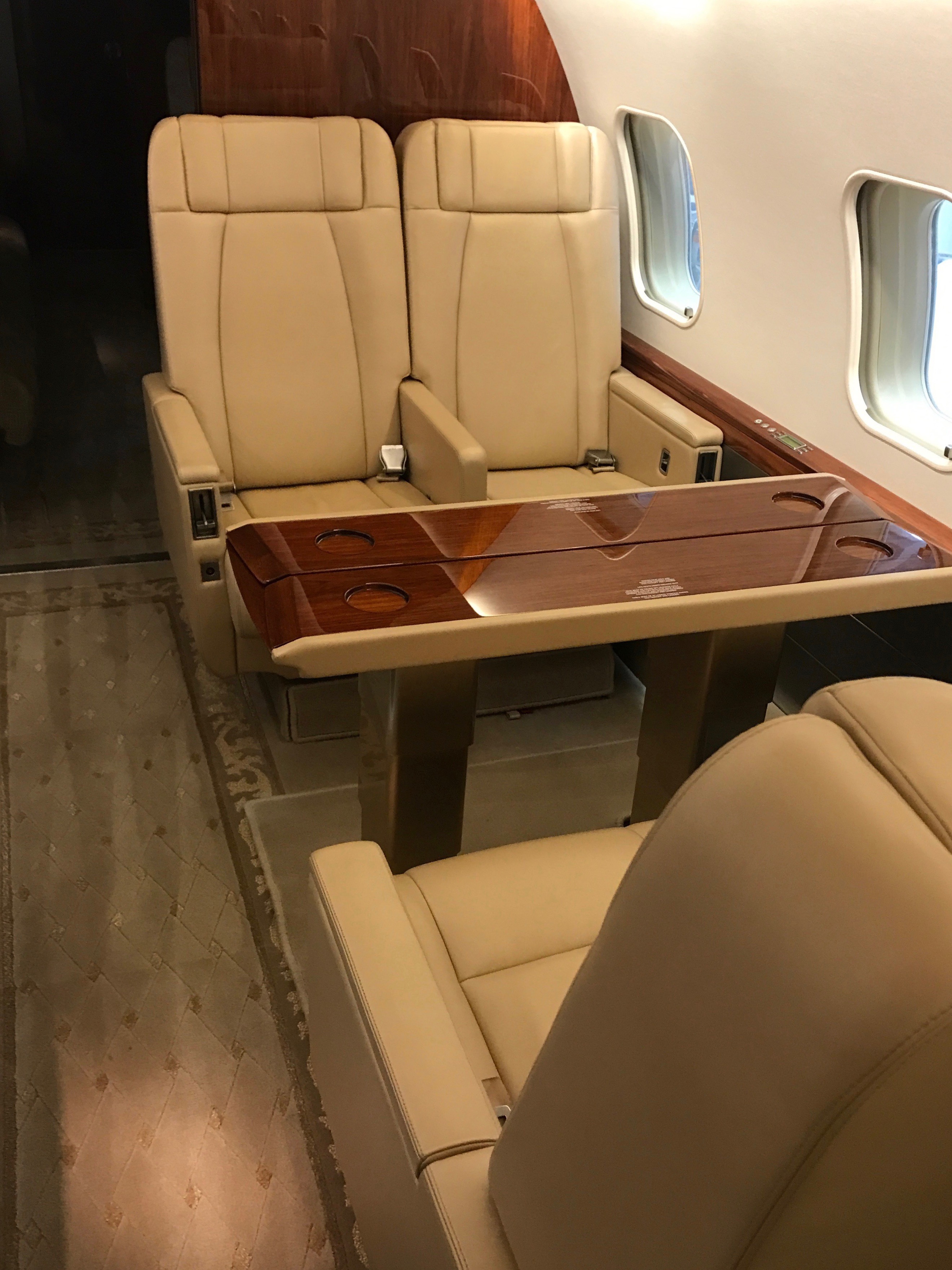

• FWD CABIN CONFIGURATION FOUR PLACE CLUB SEATING, BIRTHING PROVISION, ELECTRIC LUMBAR SUPPORT, SEATS TRACK OUT TO ISLE AND SWIVEL AND RECLINE
• MID CABIN CONFIGURATION FOUR PLACE CONFERENCE GROUP OPPOSITE CREDENZA WITH SIDE FACING BELTED SEAT NOT CERTIFIED FOR TAKE OFF OR LANDING
• AFT CABIN CONFIGURATION -TWO FULL BIRTHING SEATS OPPOSITE THREE PLACE DIVAN CABIN DIVIDER AT GALLEY, CREW REST
• AFT CABIN DIVIDER
• LAVATORY LOCATIONS FORWARD AND REAR OF AIRCRAFT
• CREW REST FORWARD

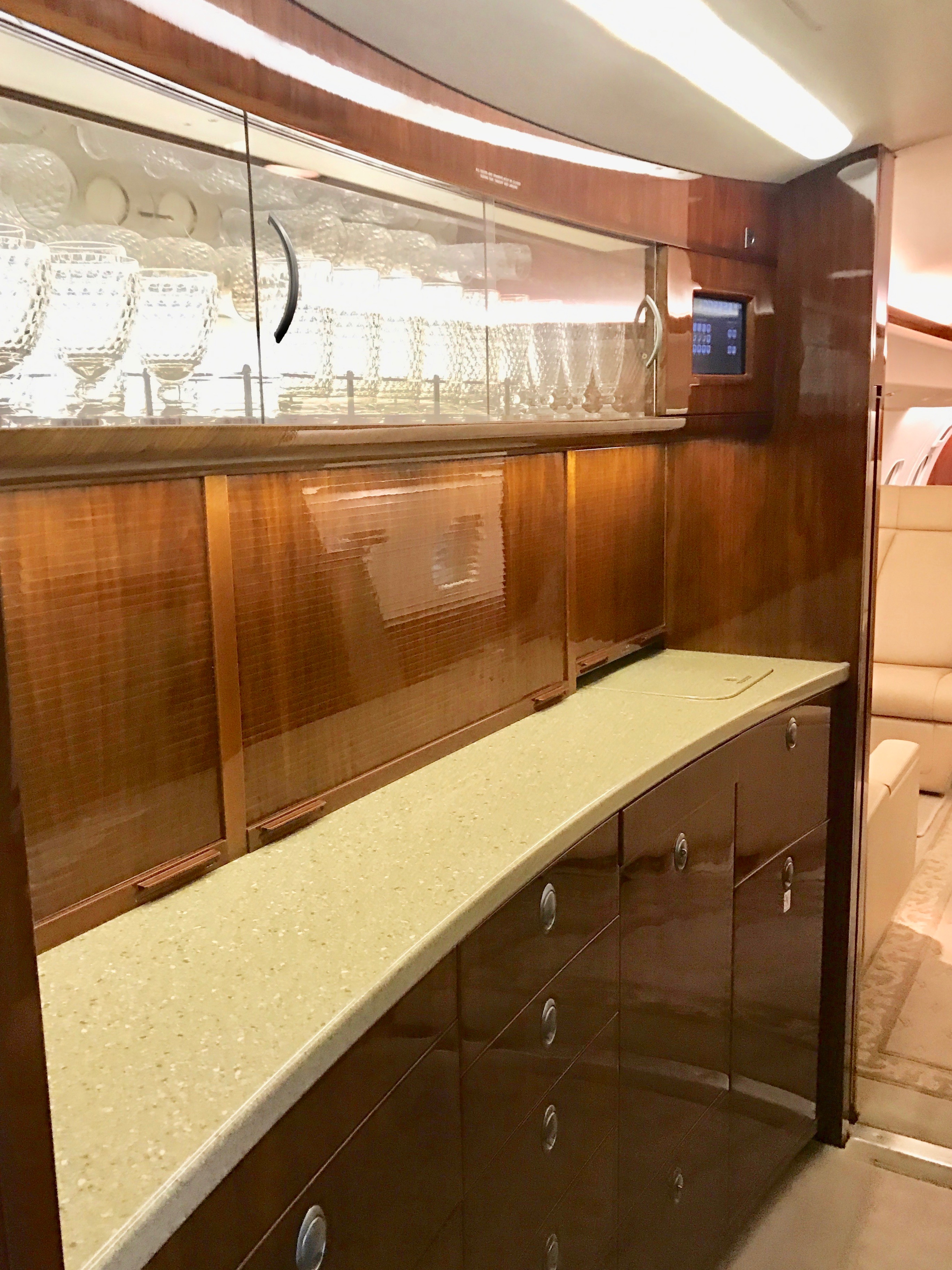

• GALLEY EQUIPMENT, TIA MICROWAVE OVEN, HIGH TEMP OVEN, EXPRESSO COFFEE MAKER, AIR CHILLER. HOT CUP, ICE DRAWER
• *2015 New Carpet, Replaced Lower Dado Panels , Global 6000 Pilot Seat Modification , Replaced Veneer , Electric Lumbar’s , Electric Pocket Door , 115 VAC/60 Hz Outlet’s

AIRCRAFT WEIGHTS

• Gross Weight Ramp: 98250 Lb
• Gross Weight Take Off: 98000 Lb SB 700-11-016
• True Empty Weight: 50068 Lb
• Operating Empty Weight 51114 Lb

PAINT BOMBARDIER TUCSON JUNE 2015

• BASE FUSELAGE MATTERHORN WHITE
• STRIPE COLOR GLOSS RED
• STRIPE COLOR GLOSS BLUE

ADDITIONAL FEATURES

• GLOBAL EXPRESS 6000 GOODRICH CREW SEATS SB 700-25-024
• PMAT: PORTABLE MAINTENANCE ACCESS TERMINAL
• OPERATIONS AIRPORTS WITH WEIGHT RESTRICTIONS SB 700-11-018
• SECURAPLANE SECURITY AND CAMARA SYSTEM, FIN CAMARA,
• EXTERNAL VEDIO CAMARA UNIT
• COCKPIT JUMP SEAT WITH QUICK DON OXYGEN MASK AND AUDIO PANEL
• ADDATIONAL TRANFORMER RECTIFIER UNIT
• ENTRY AREA HEATER
• TOW BAR STORAGE PROVISIONS
• AFT EQUIPMENT BAY ACCESS LADDER
• CATWALK BATTERY ACCESS AND 30 POUND STORAGE BOX
• COMMON KEYED EXTERIOR DOOR LOCKS
• CABIN DIVIDER WITH ELECTRIC DOOR
• LOGO TAIL LIGHTING
• XM /WX SATELLITE RECEIVER, SUBSCRIPTION ACTIVATION REQUIRED

ENTERTAINMENT

CABIN MANAGEMENT UPGRADE-CMS (HONEYWELL OVATION CABIN MANAGEMENT SYSTEM) GALLEY OVATION 8.9” TOUCHSCREEN

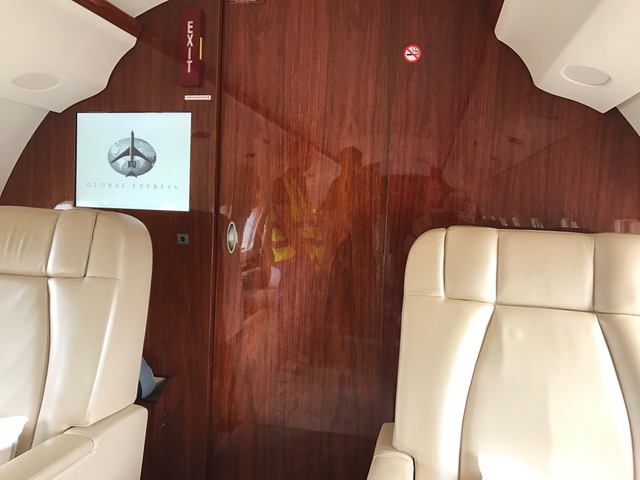

• DISPLAY/TV MONITOR’S: TWO 21” LCD MONITORS FORWARD AND REAR BULKHEAD’S
• ONE LCD 17.5” ROSEN MONITOR ON CREDENZA WITH RETRACTION INTO CABINET
• AIRSHOW SYSTEM 4000 GENESYS
• OFFICE IN THE SKY
• CD PLAYER’S / BLUE RAY’S / DVD /GAME PORT
• SATCOM DIRECT ROUTER - CABIN WIFI (IPHONE, IPAD)

INSPECTIONS

• 1000 Hour C/W 09/2017 CHECK NEXT DUE 4593
• 30 MONTH CHECK SEPTEMBER 2019
• 60 MONTH CHECK SEPTEMBER 2019
• 120 MONTH C/W BOMBARDIER TUCSON NEXT DUE 2025
• 180 MONTH DUE MARCH 2020
• SERVICE CENTER MAINTAINED AIRCRAFT
• MSP - APU 100% HONEYWELL SERVICE COVERAGE
• HAPP - HONEYWELL AVIONICS PROTECTION PLAN
• BOMBARDIER SMART PARTS PLUS
• CAMP
